VÖGELE
Road Pavers
The right paver for every application
Our extensive product range is divided into two lines: the Classic Line and the Premium Line. The Classic Line is for pavers equipped with the particularly easy-to-use ErgoBasic operating concept. The Premium Line comprises all pavers that feature cutting-edge technology and advanced mechanical engineering. Premium Line products are all equipped with the ErgoPlus 3 operating concept.
Mini Class
Small and efficient: the Mini Class encompasses VÖGELE’s small pavers, which are designed both for repair work and for the construction of cycle paths, footpaths and farm tracks, minor roads, car parks and sports grounds. They fill trenches, pave surfaces in halls or underground car parks and can be used in landscaping projects.
MINI 500
Nominal output
10.2 kW
Basic width
0.9 m
Pave width, max.
1.8 m
Max laydown rate
20 t/h

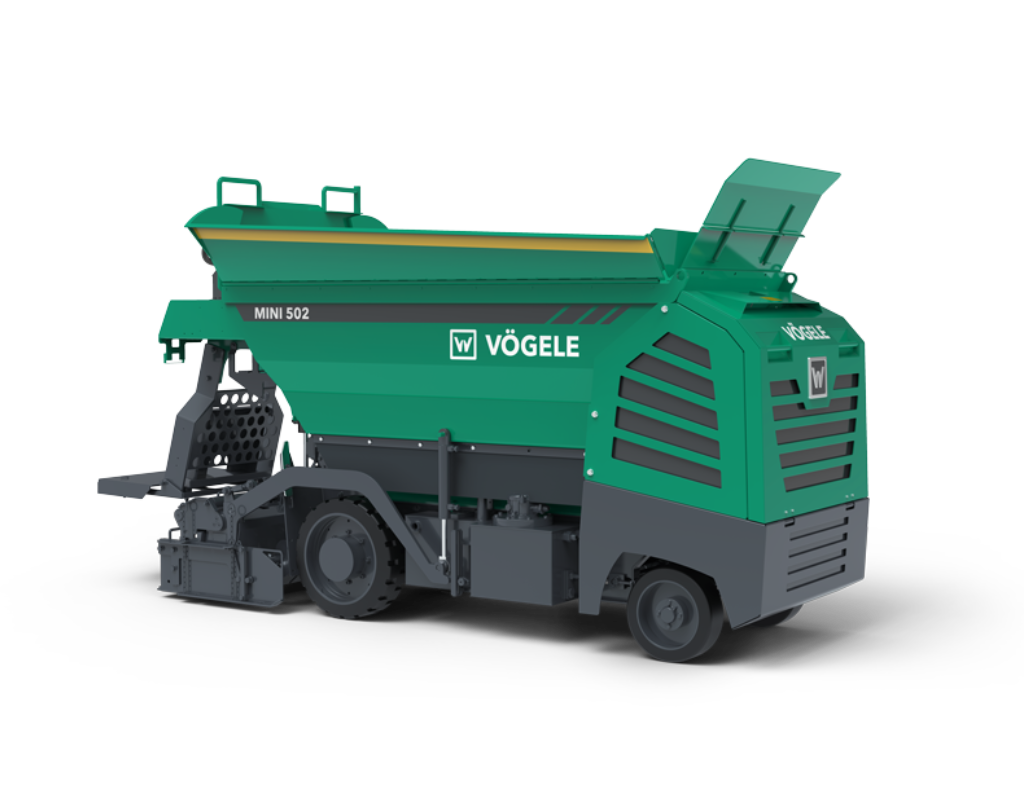

MINI 502
Nominal output
10.2 kW
Basic width
0.92 m
Pave width, max.
1.8 m
Max laydown rate
20 t/h

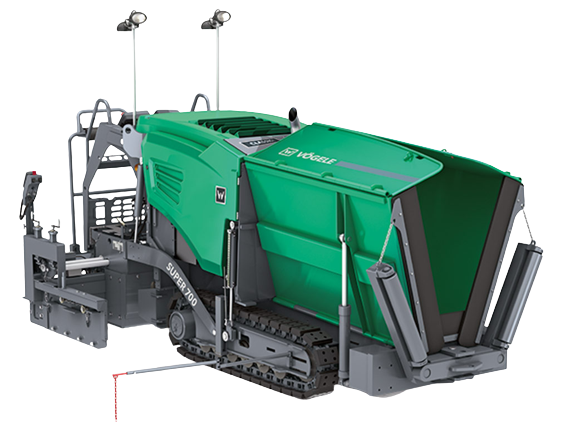

SUPER 700
Nominal output
54 kW
Basic width
1.33 mm
Pave width, max.
3.2 m
Max laydown rate
250 t/h

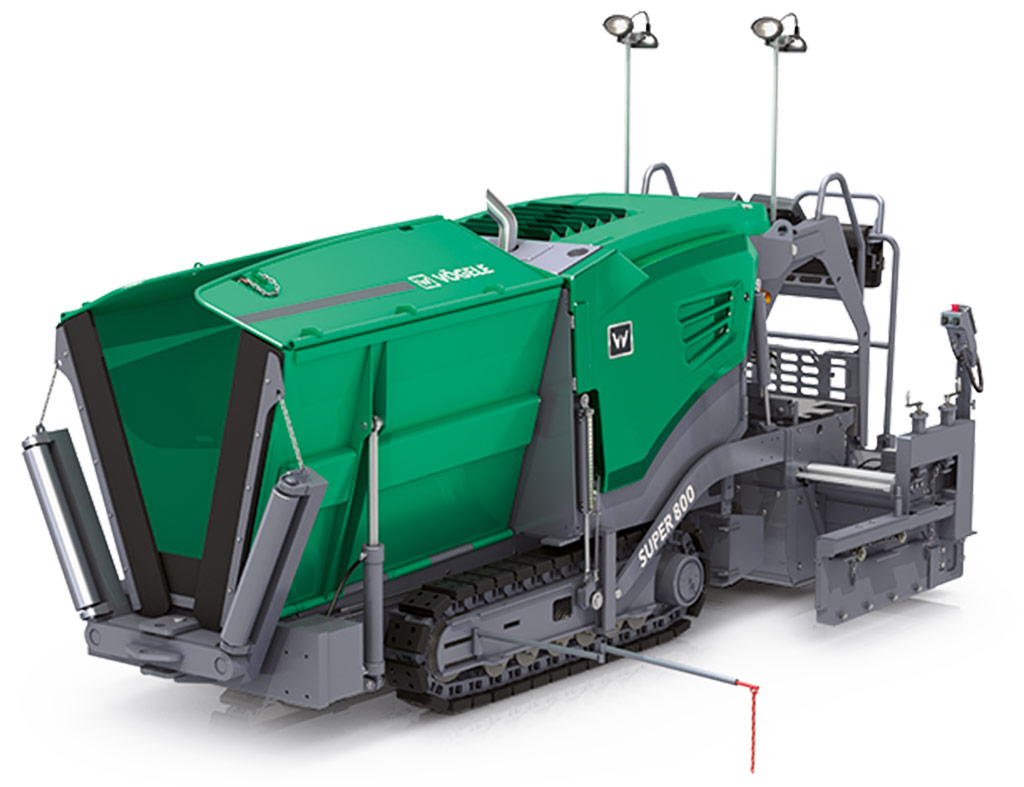

SUPER 800
Nominal output
54 kW
Basic width
1.33 mm
Pave width, max.
3.2 m
Max laydown rate
300 t/h

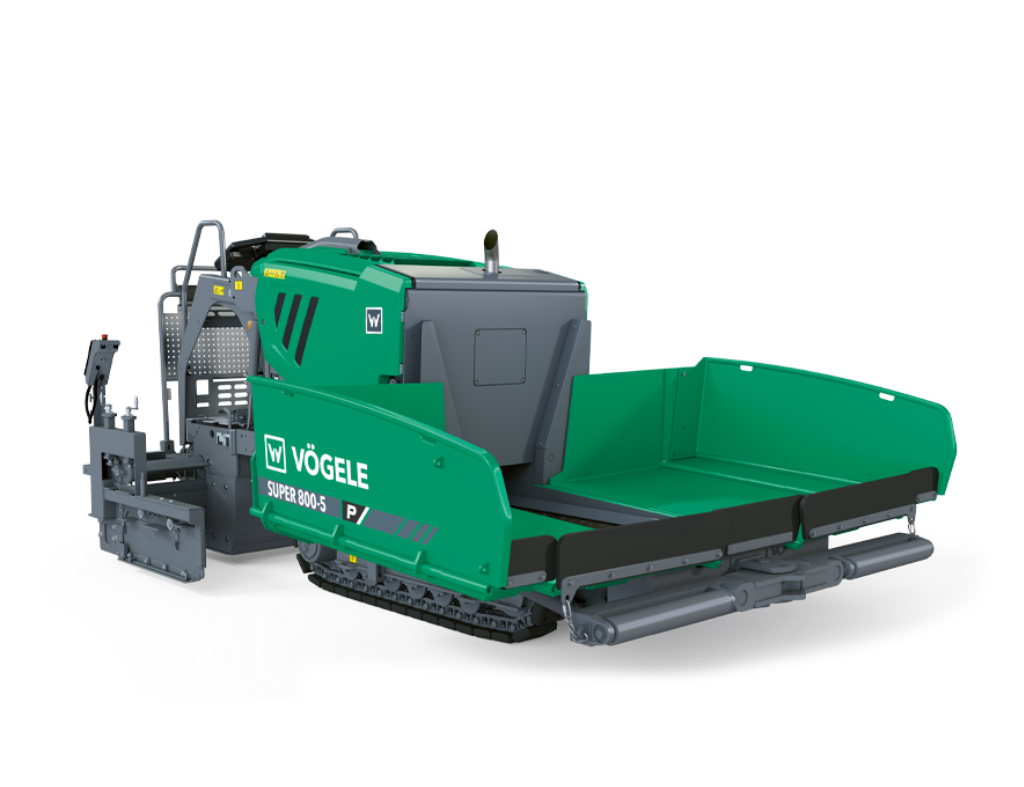

SUPER 800-5 P
Nominal output
54 kW
Basic width
1.4 mm
Pave width, max.
3.2 m
Max laydown rate
300 t/h
Compact Class
Compact and manoeuvrable: these are the hallmarks of Compact Class pavers. VÖGELE compact pavers are hence particularly suitable for small to mid-sized construction jobs with confined conditions, such as the construction or rehabilitation of combined foot and cycle paths, city streets, farm tracks and even small to medium-sized areas.

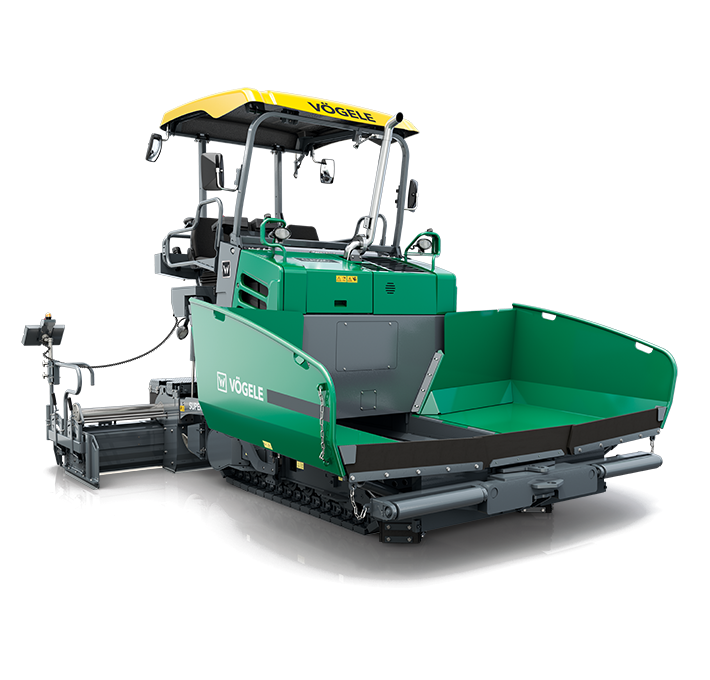

SUPER 1000
Nominal output
55 kW
Basic width
1.85 m
Pave width, max.
3.9 m
Max laydown rate
270 t/h
SUPER 1003
Nominal output
55 kW
Basic width
1.85 m
Pave width, max.
3.9 m
Max laydown rate
230 t/h

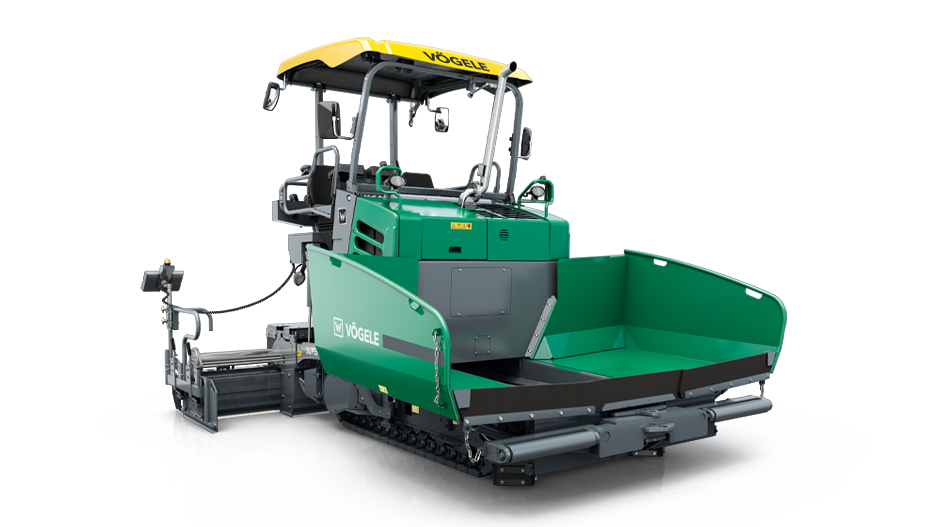

SUPER 1300
Nominal output
74.4 kW
Basic width
1.85 m
Pave width, max.
5 m
Max laydown rate
350 t/h

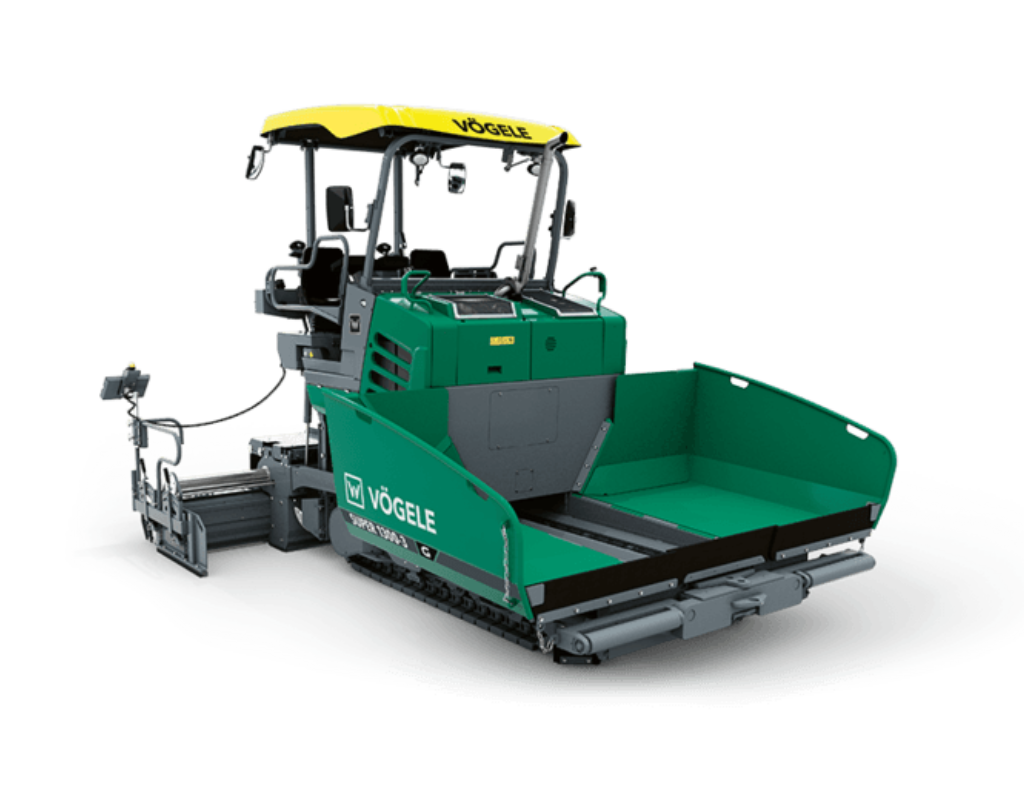

SUPER 1300-3 G
Nominal output
74 kW
Basic width
1.85 m
Pave width, max.
5 m
Max laydown rate
350 t/h
SUPER 1303
Nominal output
74.4 kW
Basic width
1.85 m
Pave width, max.
5 m
Max laydown rate
250 t/h

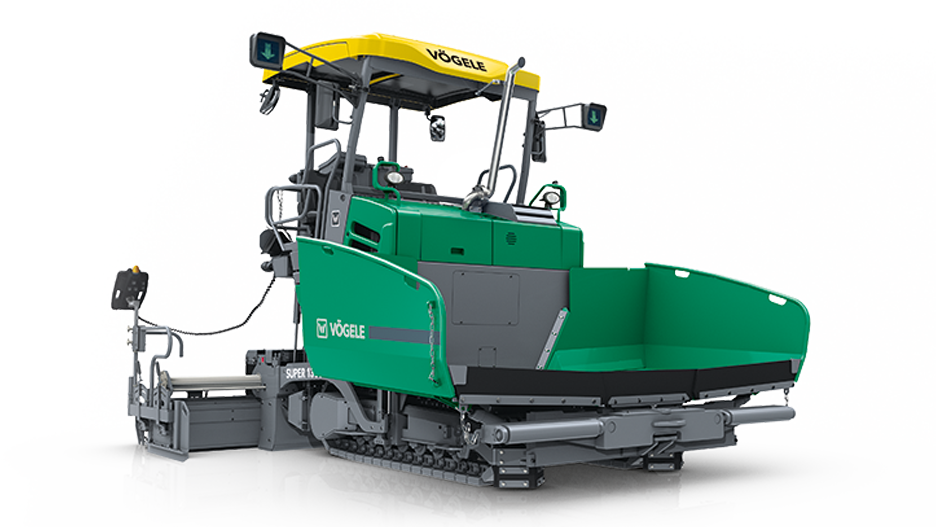

SUPER 1300-3
Nominal output
74.4 kW
Basic width
1.85 m
Pave width, max.
5 m
Max laydown rate
350 t/h
SUPER 1303-3
Nominal output
74.4 kW
Basic width
1.85 m
Pave width, max.
4.5 m
Max laydown rate
250 t/h
SUPER 1303-3 G
Nominal output
74 kW
Basic width
1.85 m
Pave width, max.
4.5 m
Max laydown rate
250 t/h

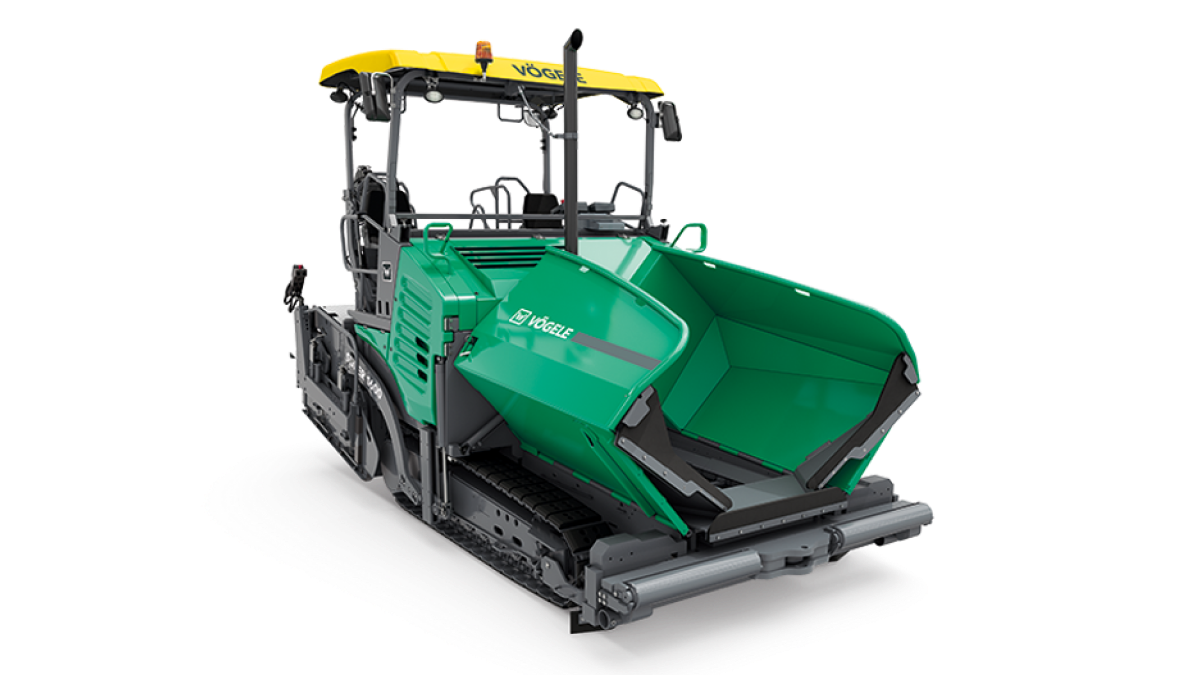

Universal Class
Versatile and powerful: the extremely wide range of applications is the most striking feature of pavers in the Universal Class. They handle motorway projects just as well as roundabouts, also because they can be combined with VÖGELE high-compaction technology.

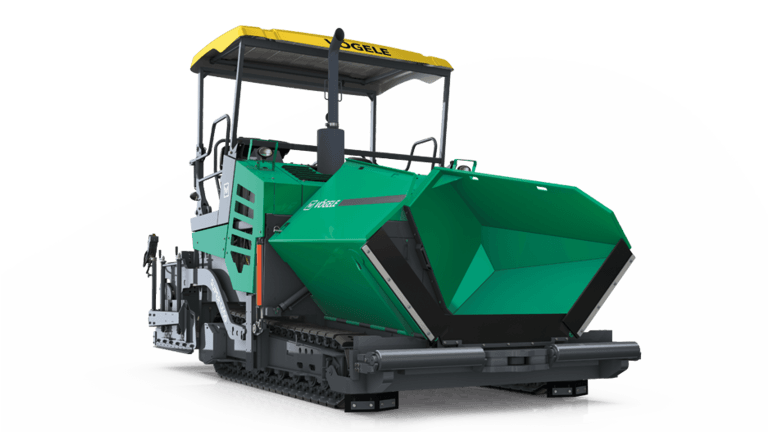

SUPER 1400
Nominal output
101 kW
Basic width
2.55 m
Pave width, max.
6.3 m
Max laydown rate
600 t/h

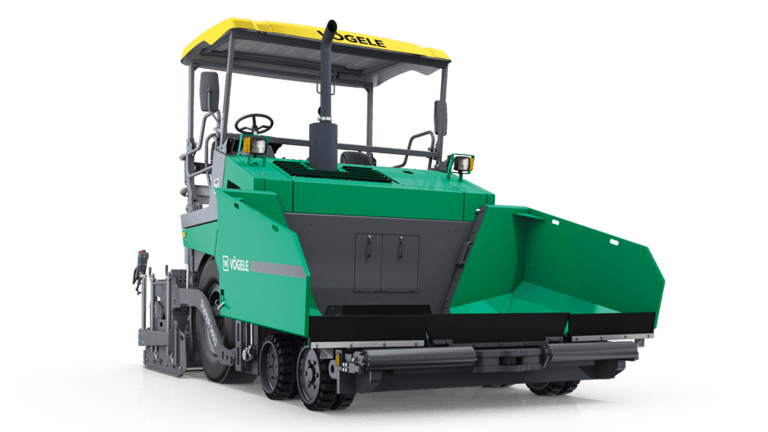

SUPER 1403
Nominal output
101 kW
Basic width
2.55 m
Pave width, max.
6 m
Max laydown rate
600 t/h

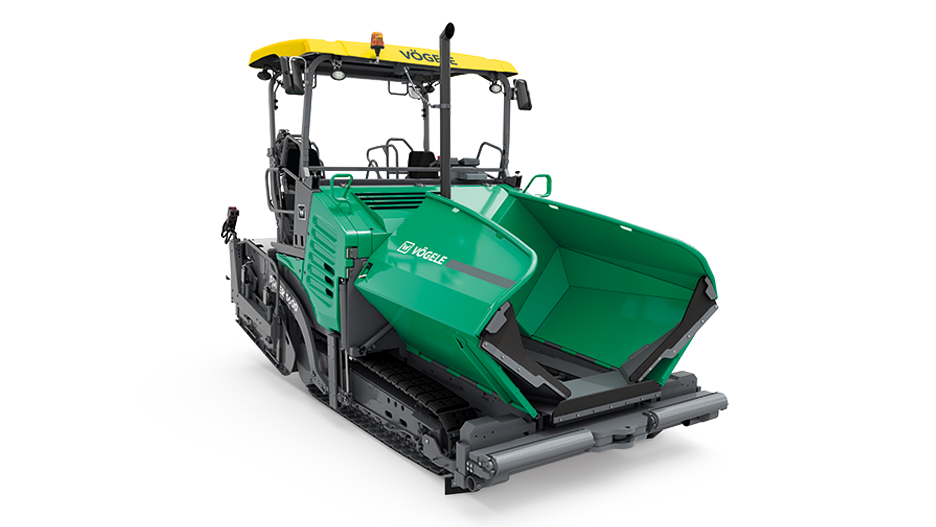

SUPER 1600
Nominal output
116 kW
Basic width
2.55 m
Pave width, max.
6.3 m
Max laydown rate
600 t/h

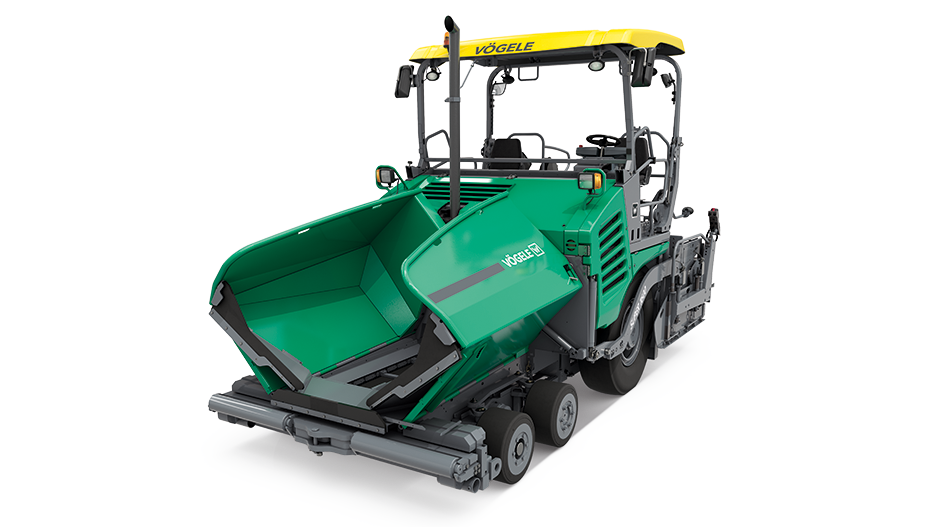

SUPER 1603
Nominal output
116 kW
Basic width
2.55 m
Pave width, max.
6.3 m
Max laydown rate
600 t/h

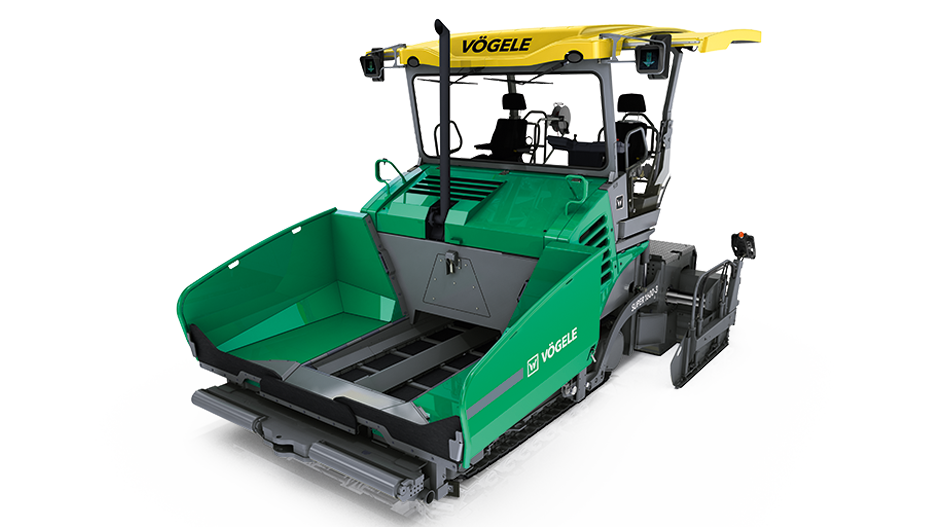

SUPER 1600-3
Nominal output
116 kW
Basic width
2.55 m
Pave width, max.
7.5 m
Max laydown rate
600 t/h

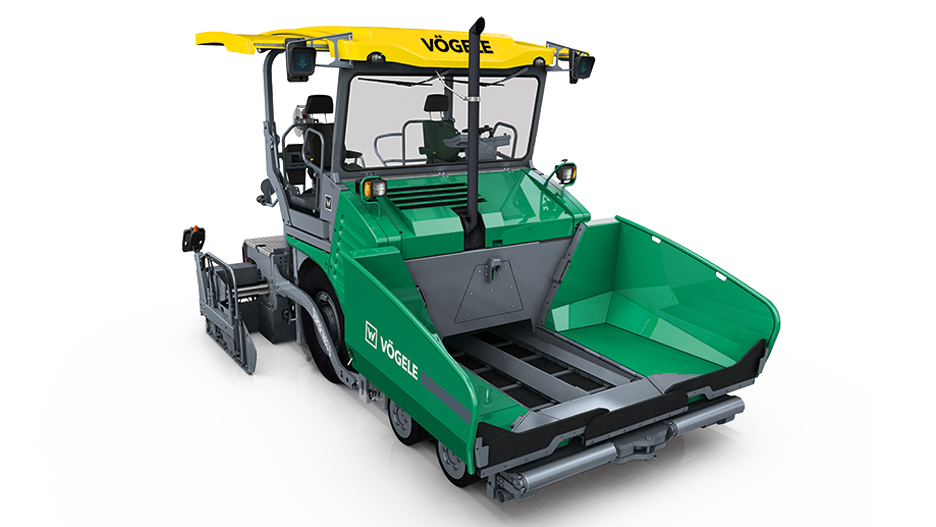

SUPER 1603-3
Nominal output
116 kW
Basic width
2.55 m
Pave width, max.
7 m
Max laydown rate
600 t/h

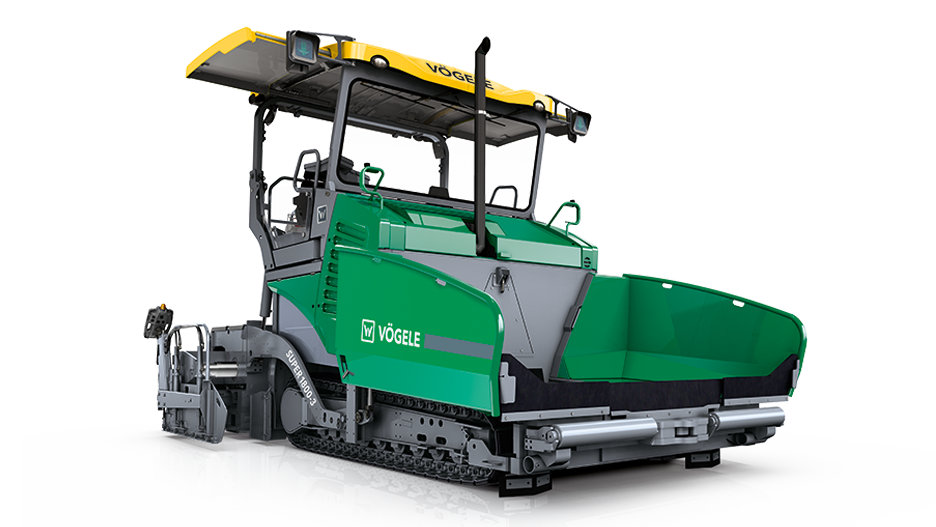

SUPER 1800-3
Nominal output
127 kW
Basic width
2.55 m
Pave width, max.
10 m
Max laydown rate
700 t/h

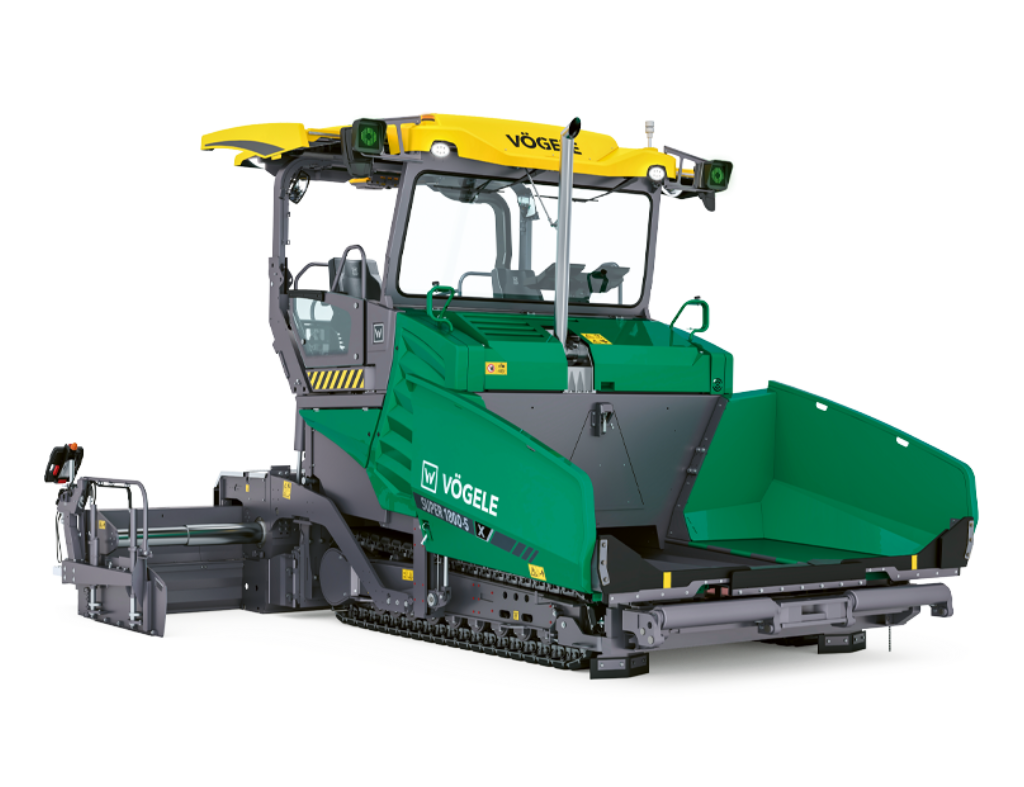

SUPER 1800-5 X
Nominal output
129 kW
Basic width
2.55 m
Pave width, max.
10 m
Max laydown rate
700 t/h

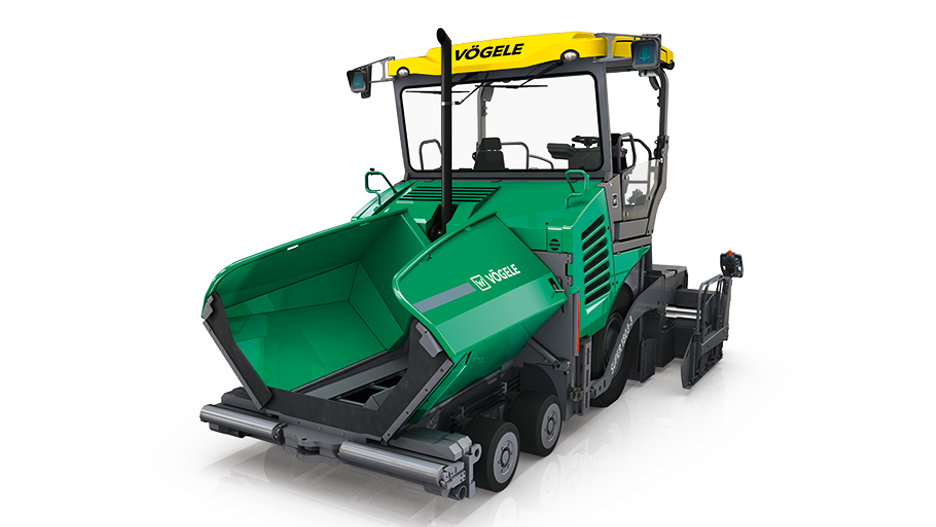

SUPER 1803-3
Nominal output
127 kW
Basic width
2.55 m
Pave width, max.
8 m
Max laydown rate
700 t/h

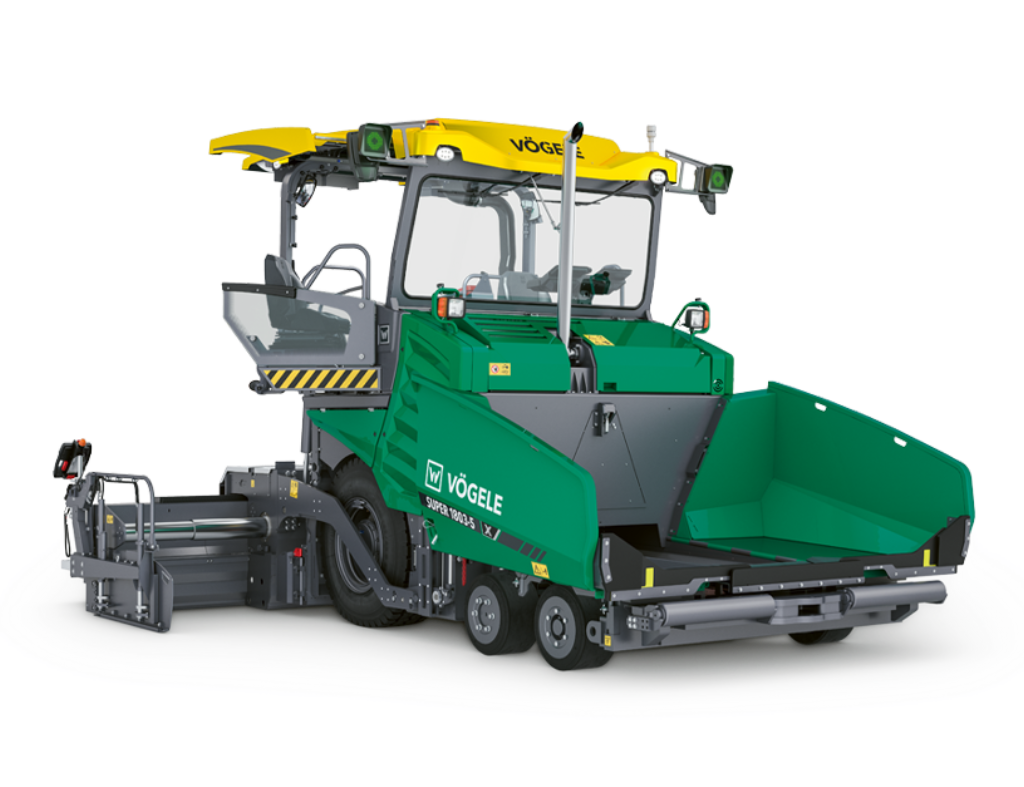

SUPER 1803-5 X
Nominal output
129 kW
Basic width
2.55 m
Pave width, max.
8 m
Max laydown rate
700 t/h

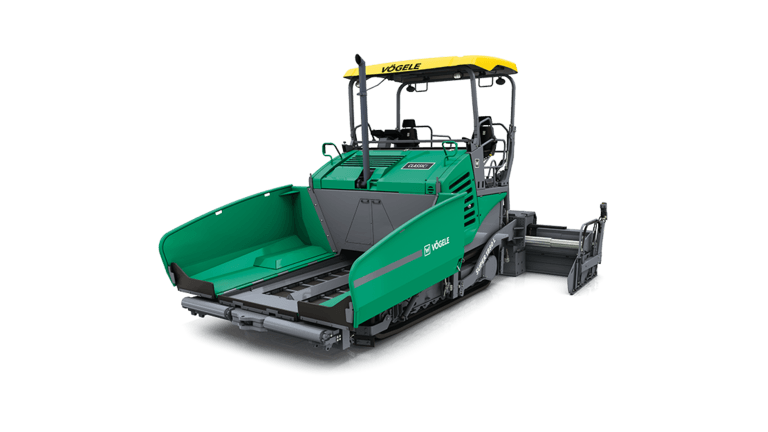

SUPER 1880 L
Nominal output
158 kW
Basic width
2.55 m
Pave width, max.
9.5 m
Max laydown rate
1,000 t/h

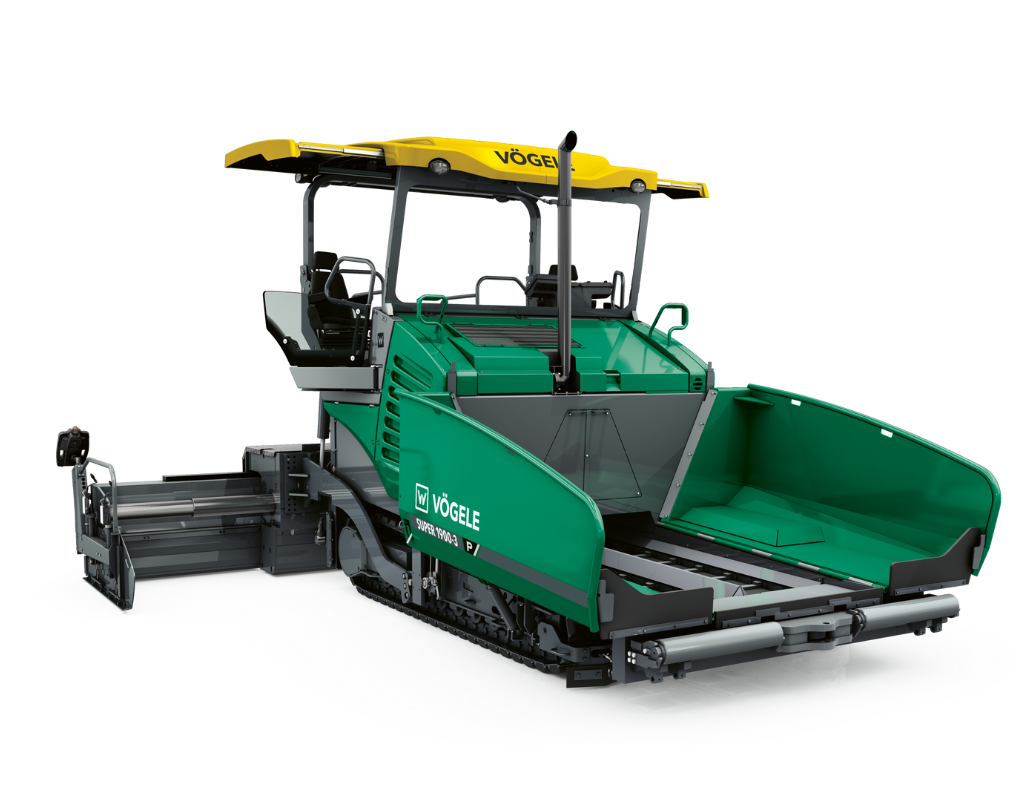

SUPER 1900-3 G
Nominal output
158 kW
Basic width
2.55 m
Pave width, max.
10 m
Max laydown rate
1,000 t/h
Highway Class
Far and wide: the VÖGELE pavers of the Highway Class are perfectly at home on motorways and handling other demanding large-scale projects. Immense pave widths and laydown rates, the possibility of using high compaction technology and plenty of power are all part of the package with these pavers.

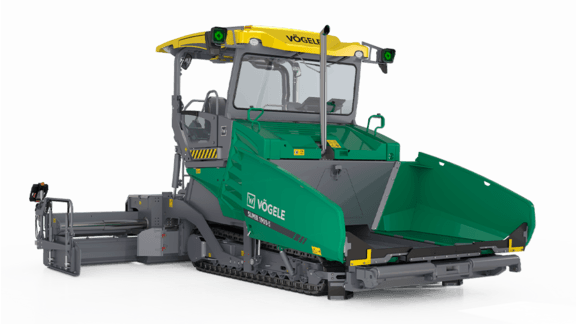

SUPER 1900-5
Nominal output
149 kW
Basic width
2.55 m
Pave width, max.
11.5 m
Max laydown rate
900 t/h

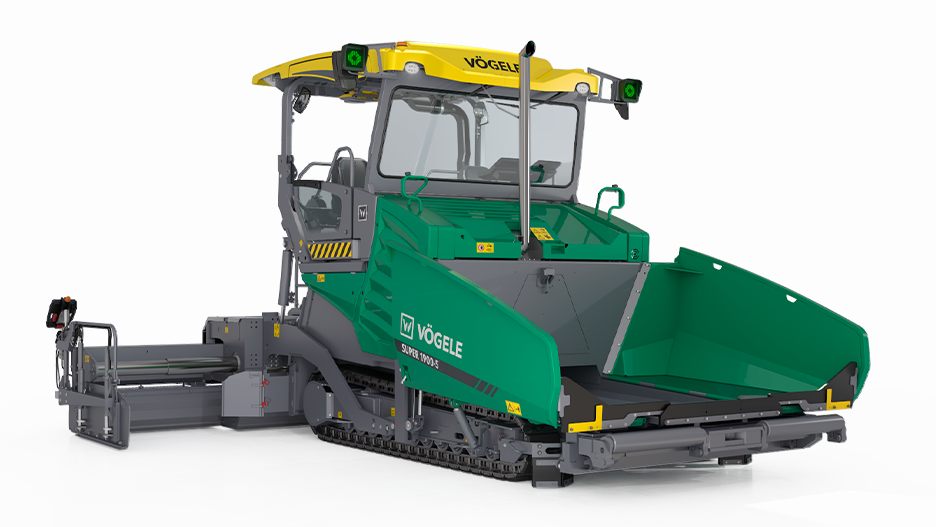

SUPER 1900-5 X
Nominal output
149 kW
Basic width
2.55 m
Pave width, max.
11.5 m
Max laydown rate
900 t/h

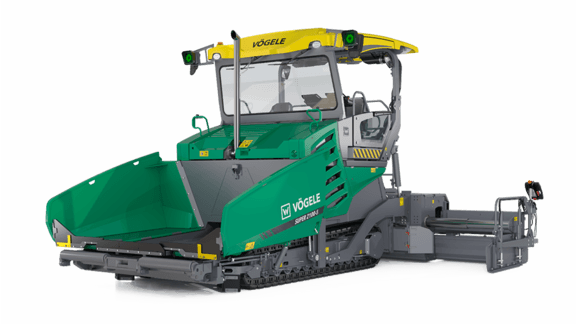

SUPER 2100-5
Nominal output
187 kW
Basic width
2.55 m
Pave width, max.
14 m
Max laydown rate
1,100 t/h
SUPER 2100-5 X
Nominal output
187 kW
Basic width
2.55 m
Pave width, max.
14 m
Max laydown rate
1,100 t/h

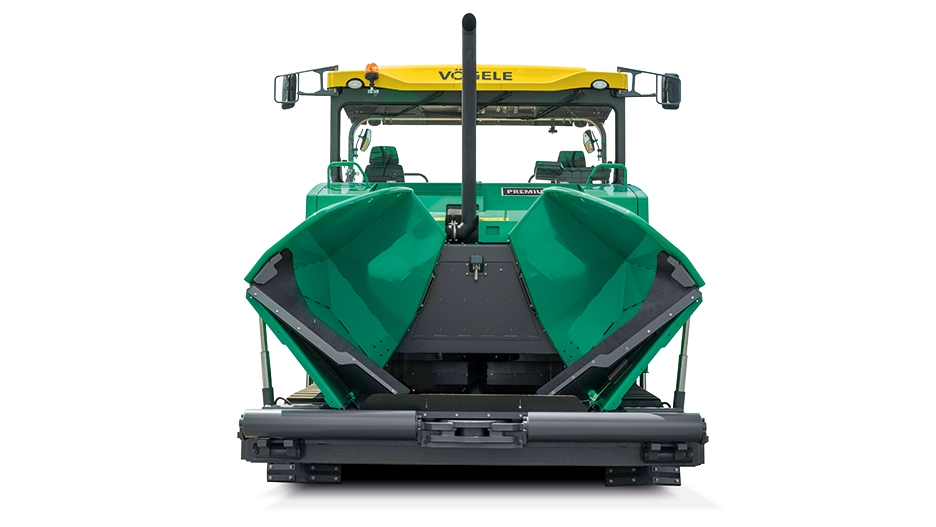

SUPER 3000-3
Nominal output
354 kW
Basic width
2.55 m
Pave width, max.
18 m
Max laydown rate
1,800 t/h
Special Class
That special something: the Special Class comprises machines for specific applications, such as a spray paver for paving thin overlay “hot on hot” or InLine Pave machine technology for the construction of compact asphalt pavements. This also includes material feeders for the uninterrupted and non-contacting transfer of mix.

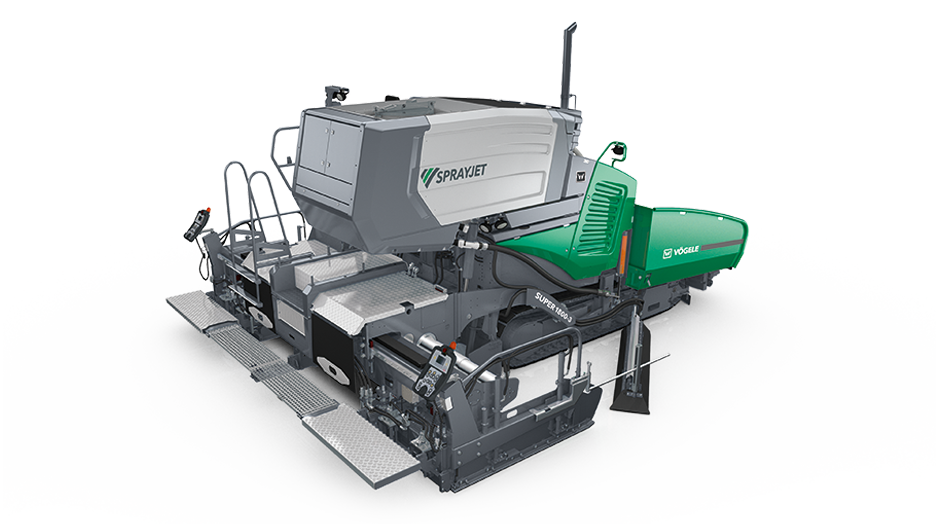

SUPER 1800-3 SprayJet
Nominal output
127 kW
Basic width
2.55 m
Pave width, max.
6 m
Max laydown rate
700 t/h

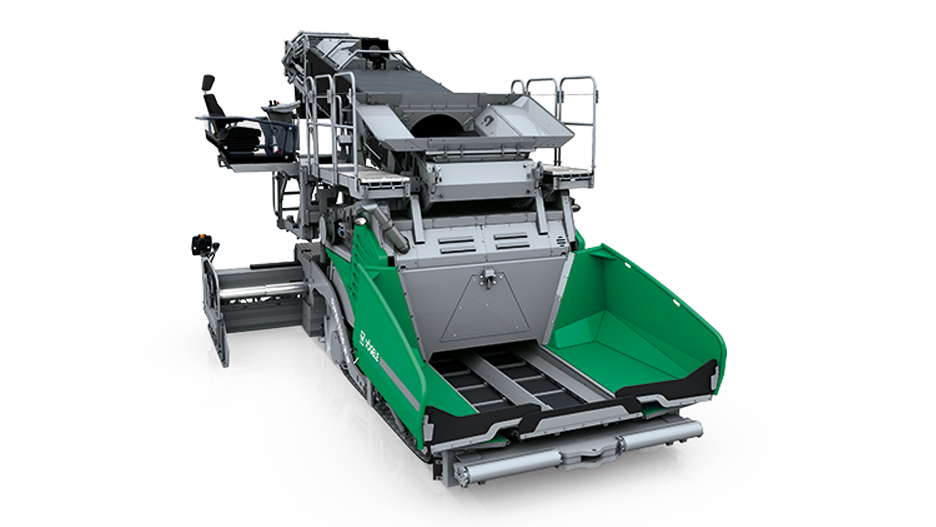

SUPER 2100-3 IP
Nominal output
179 kW
Basic width
2.98 m
Pave width, max.
8.5 m
Max laydown rate
1,100 t/h
