WIRTGEN
Cold Milling Machines
Efficient milling and granulating of road pavements
Asphalt and concrete pavements can be cost-effectively removed with cold milling machines. The range of applications extends from the complete removal of asphalt and concrete to the layer-by-layer removal and levelling of asphalt and concrete surfaces. With WIRTGEN cold milling machines, it is possible to machine working widths from 35 cm up to 4.40 m and working depths up to 35 cm in a single pass. In addition, a large number of different milling drums, such as ECO cutters or fine milling drums, ensure that machines can be used with a high degree of flexibility.
Small Milling Machines
Small milling machines are equipped with a wheeled chassis and a milling drum positioned at the rear. The granulated RAP which is broken up by the rotating milling drum is transferred to a slewing and height-adjustable discharge conveyor and immediately loaded onto waiting transport vehicles. The compact rear loaders are highly maneuverable and their rear right wheel can be swiveled in when milling flush to the edges of obstacles. A variety of different milling drums are available, enabling the small milling machines to cover a wide range of applications extending from partial pavement rehabilitations and tie-in milling to the rehabilitation of industrial floors.
Brochures

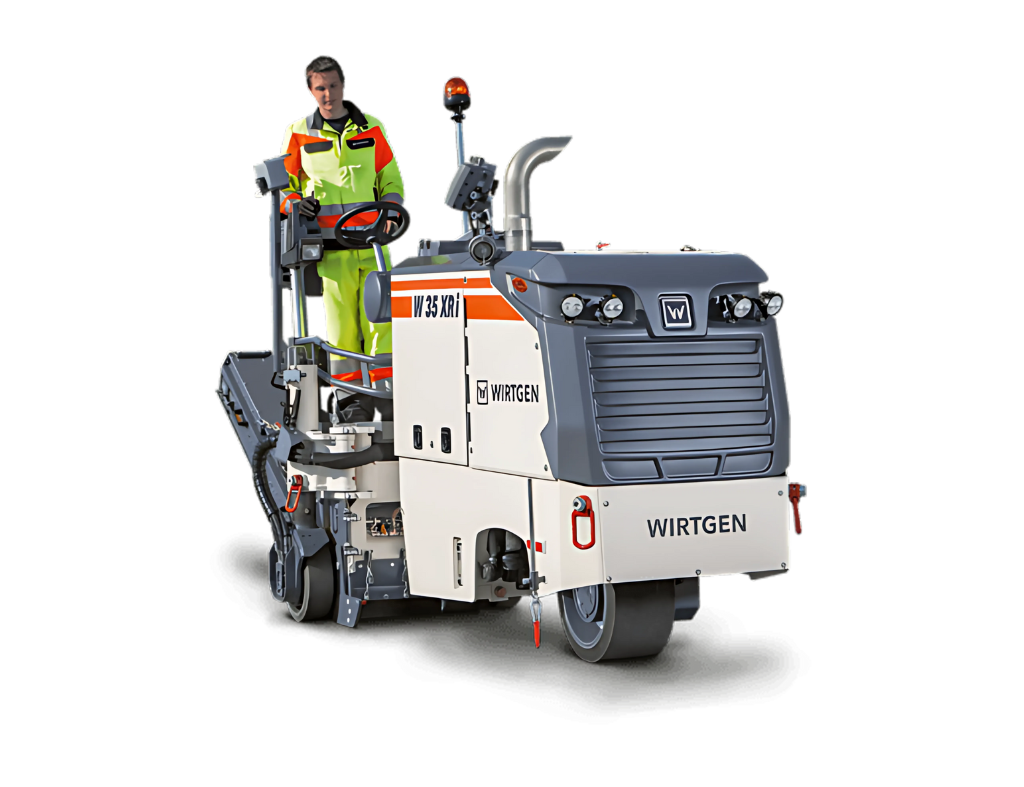

W 35 XRi
Milling width
350 mm
Depth max.
110 mm
Max Power
45 kW / 61 HP
Ow, CE
4,650 kg

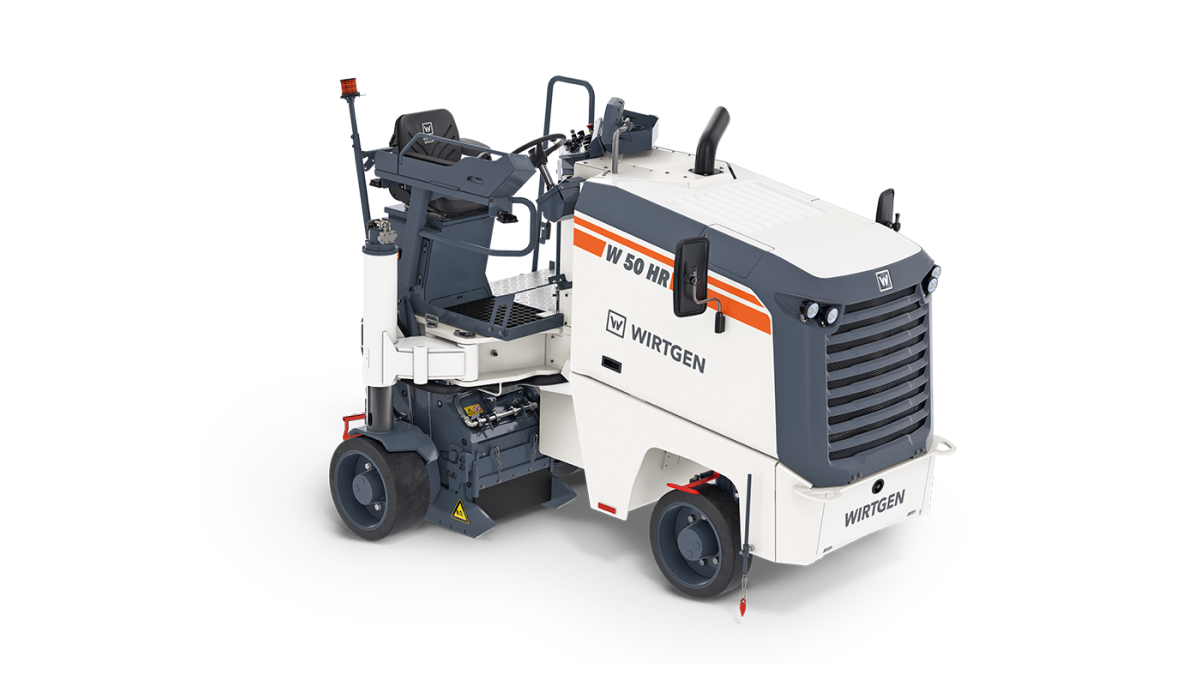

W 50 HR
Milling width
500 mm
Depth max.
180 mm
Max Power
86 kW / 117 HP
Ow, CE
5,805 kg

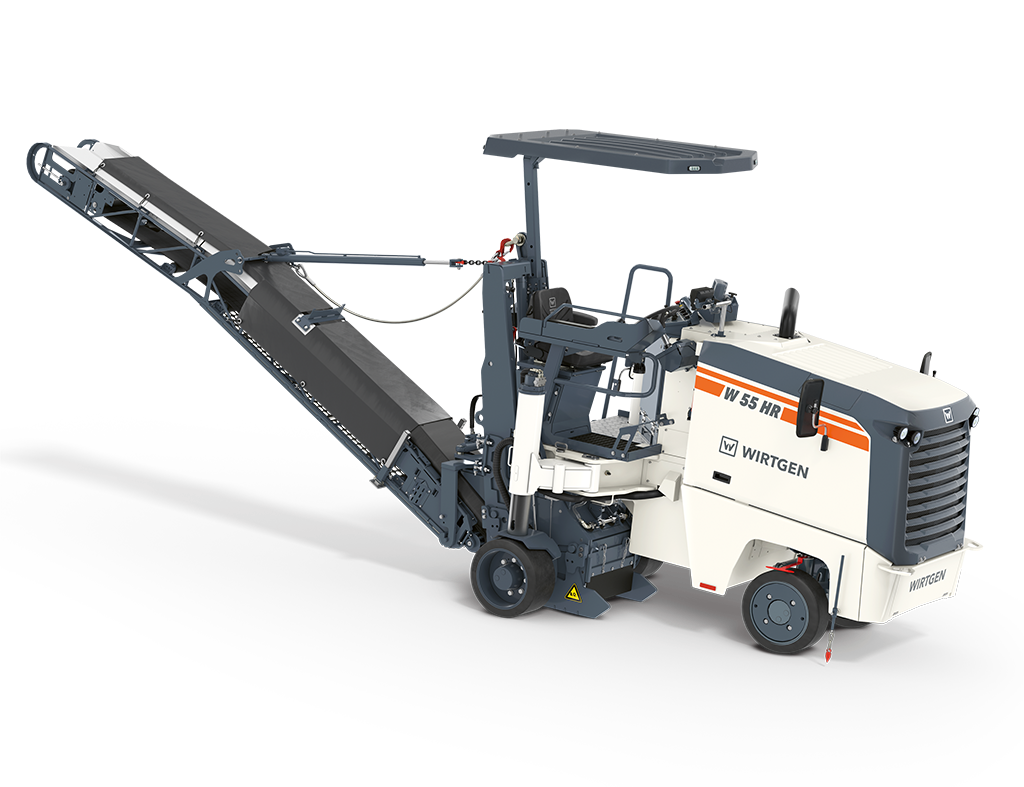

W 55 HR
Milling width
500 mm
Depth max.
180 mm
Max Power
86 kW / 117 HP
Ow, CE
6,360 kg

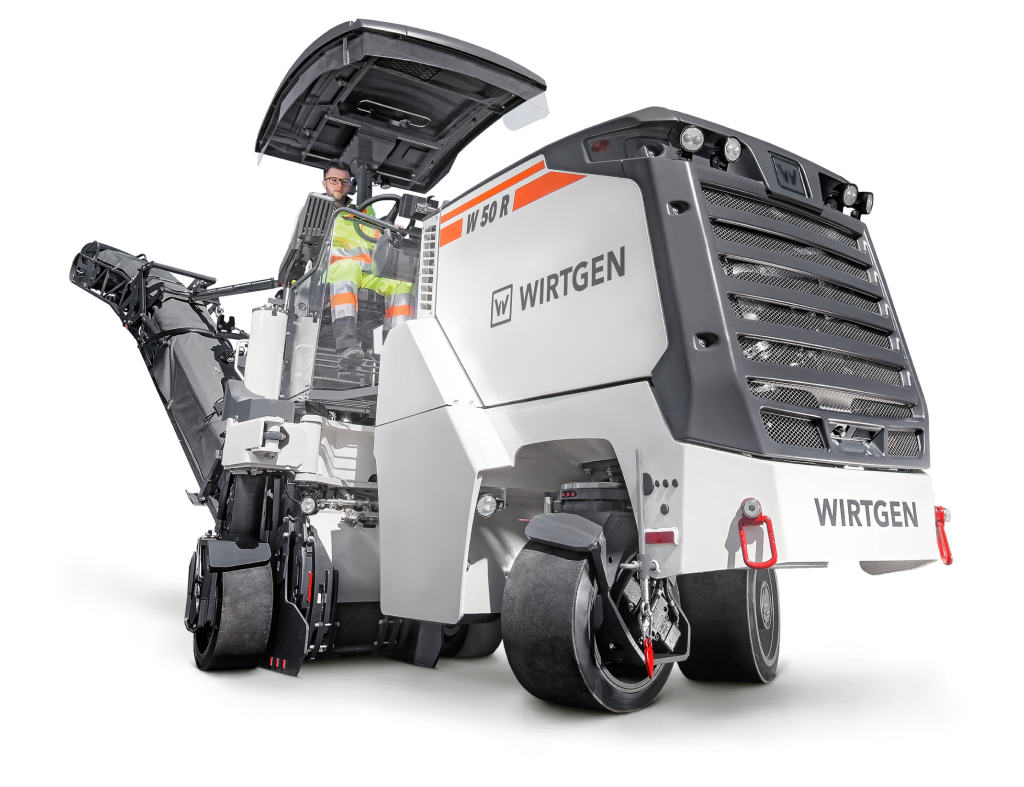

W 50 R
Milling width
500 mm
Depth max.
210 mm
Max Power
100 kW / 136 HP
Ow, CE
6,930 kg

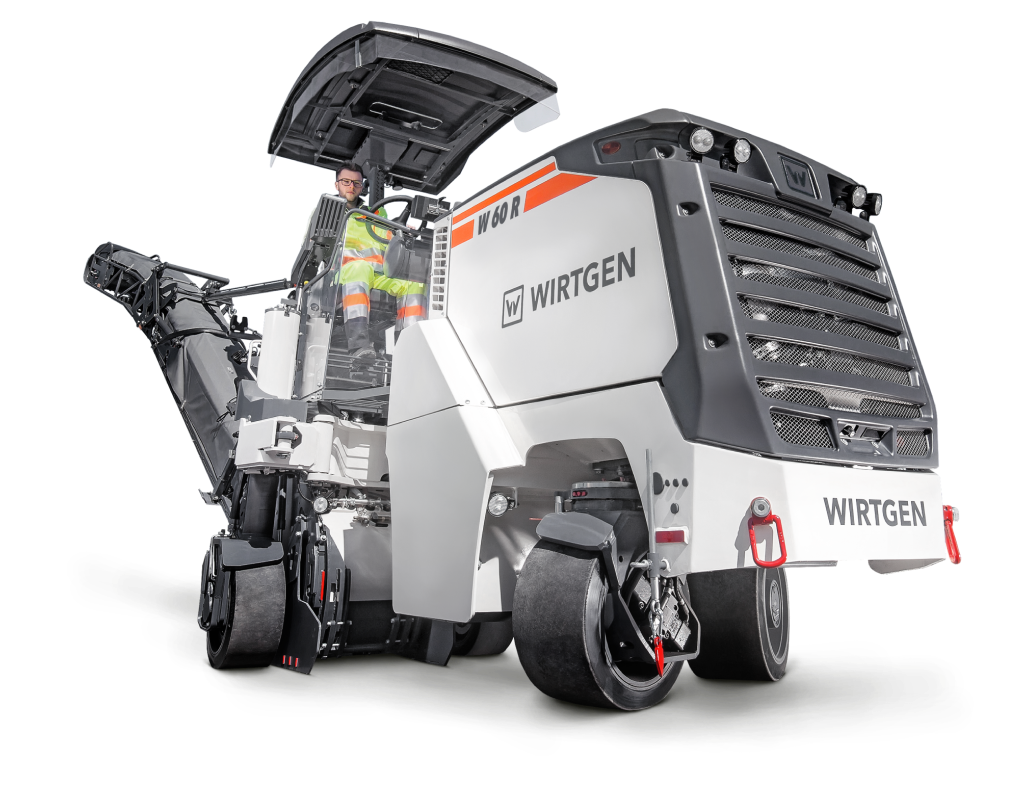

W 60 R
Milling width
600 mm
Depth max.
210 mm
Max Power
100 kW / 136 HP
Ow, CE
7,450 kg

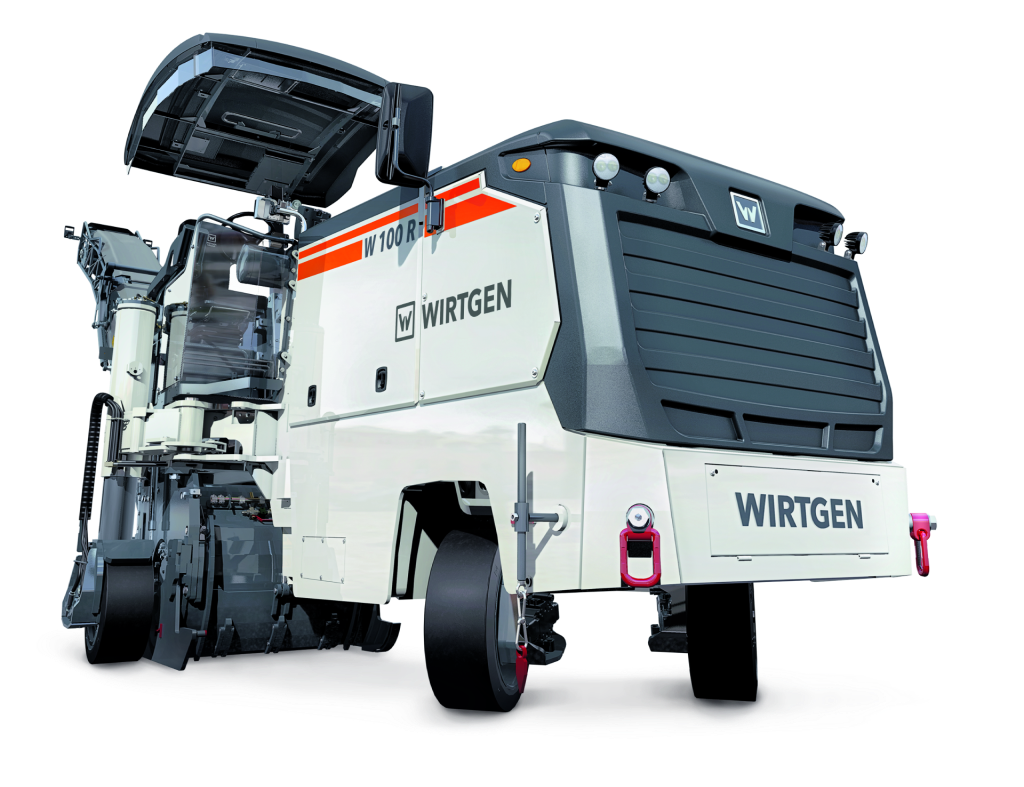

W 100 R
Milling width
1,000 mm
Depth max.
300 mm
Max Power
155 kW / 211 HP
Ow, CE
14,700 kg

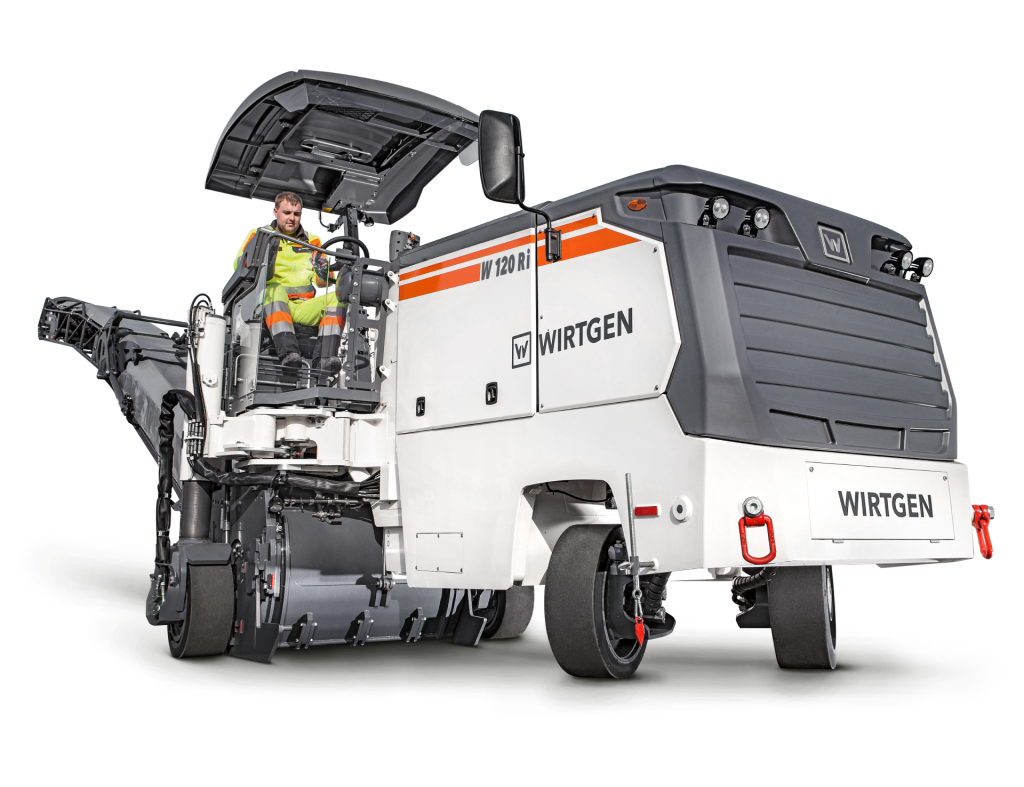

W 120 R
Milling width
1,200 mm
Depth max.
300 mm
Max Power
155 kW / 211 HP
Ow, CE
15,350 kg

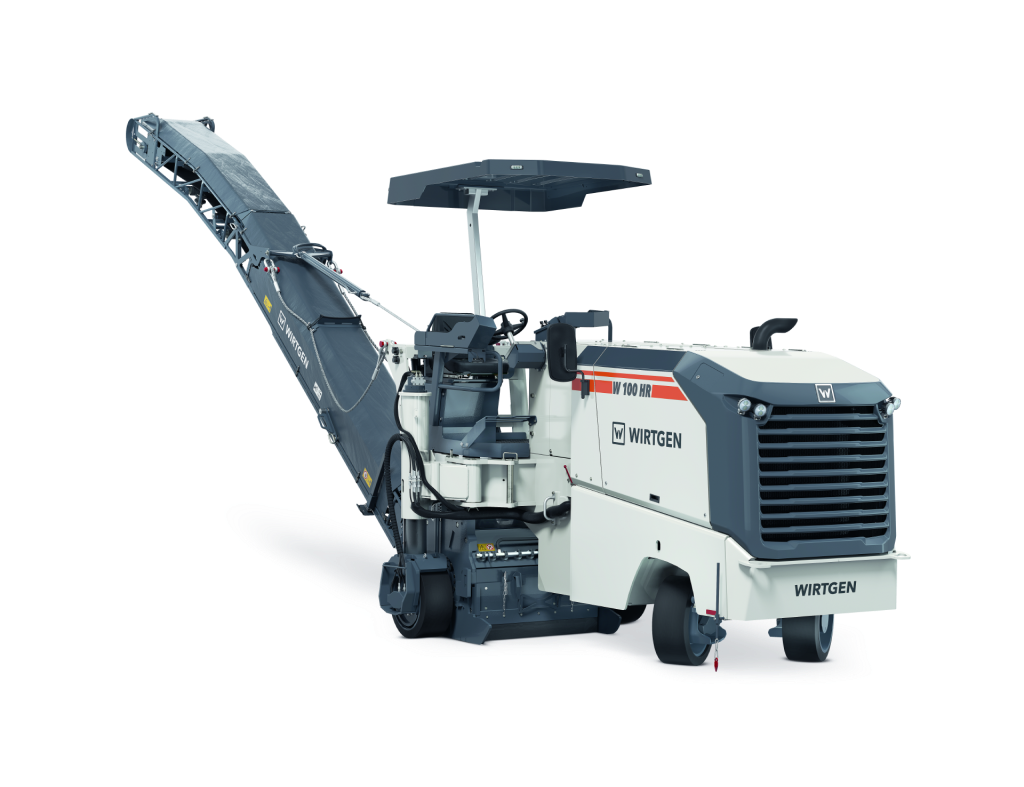

W 100 HR
Milling width
1,000 mm
Depth max.
200 mm
Max Power
155 kW / 211 HP
Ow, CE
13,600 kg

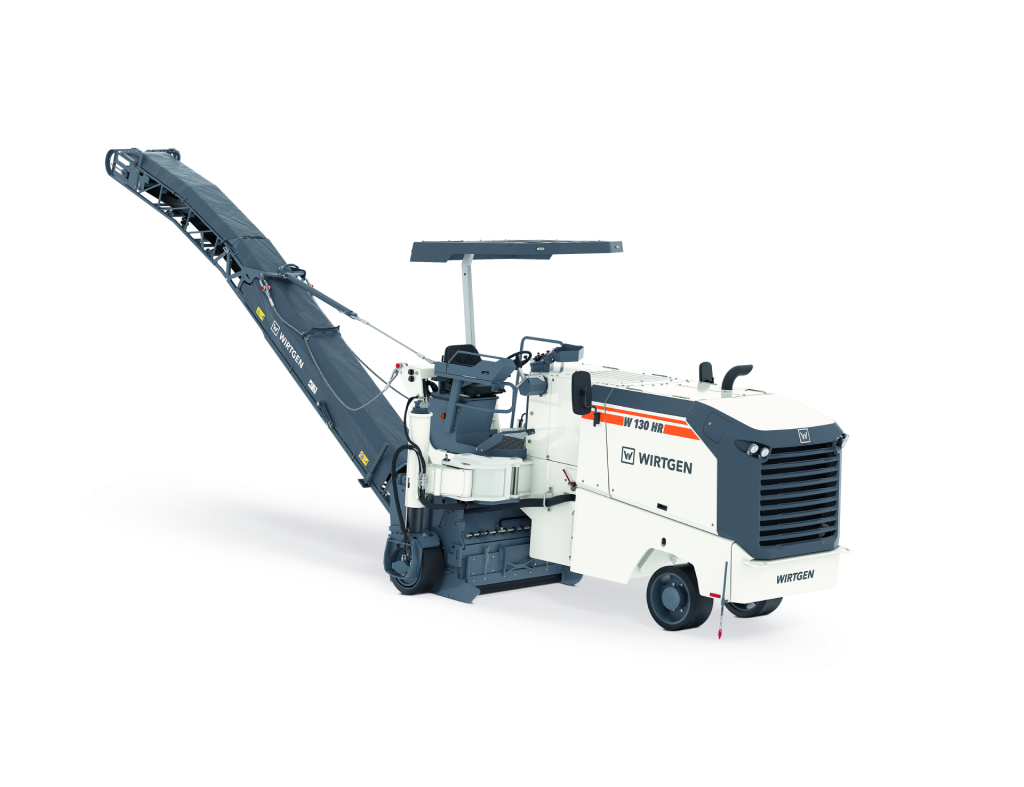

W 130 HR
Milling width
1,300 mm
Depth max.
200 mm
Max Power
155 kW / 211 HP
Ow, CE
14,100 kg
Compact Milling Machines
Brochures

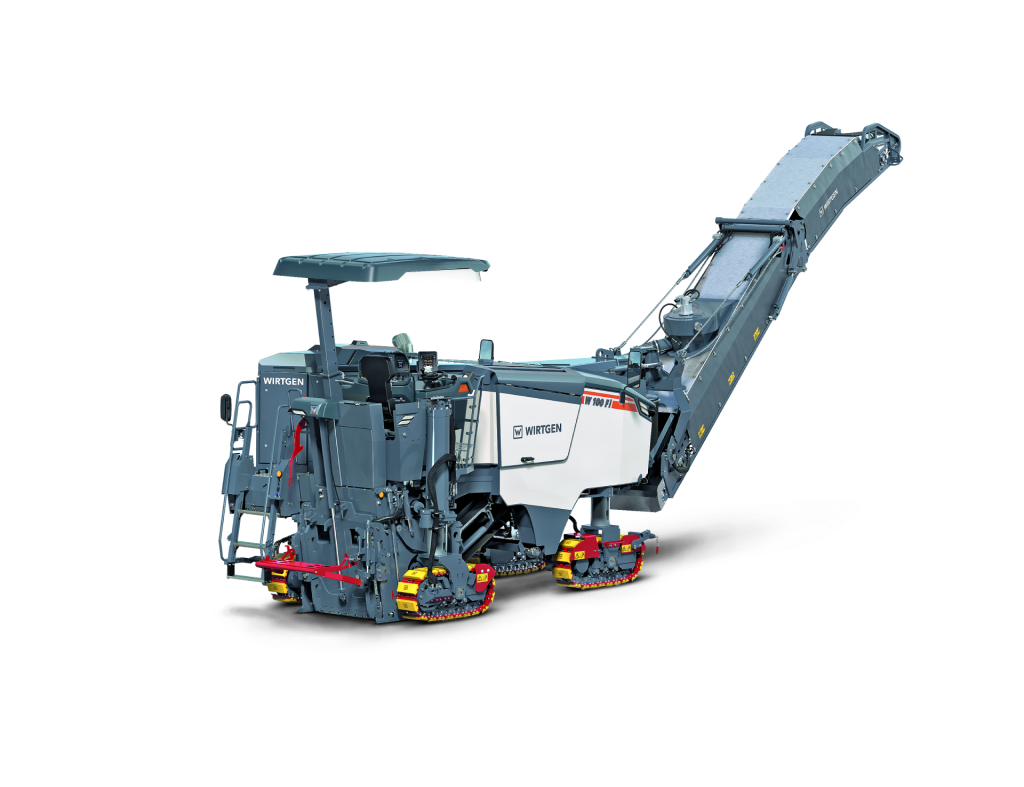

W 100 F
Milling width
1,000 mm
Depth max.
330 mm
Max Power
261 kW / 355 HP
Ow, CE
19,700 kg

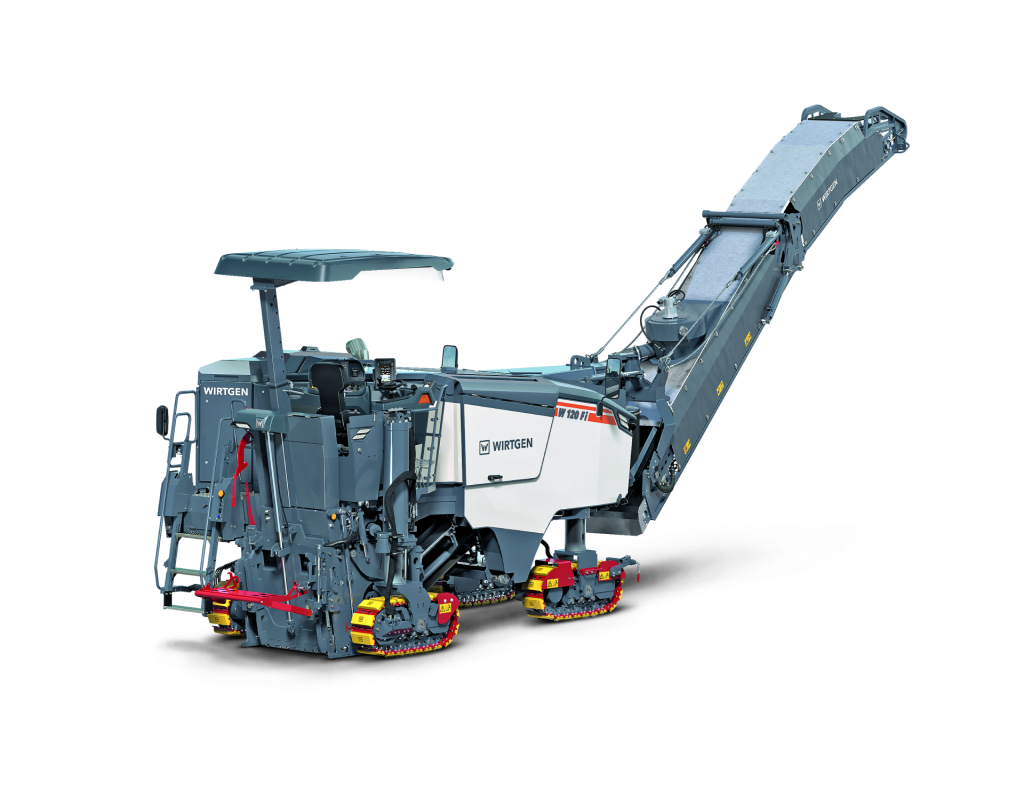

W 120 F
Milling width
1,200 mm
Depth max.
330 mm
Max Power
261 kW / 355 HP
Ow, CE
20,700 kg

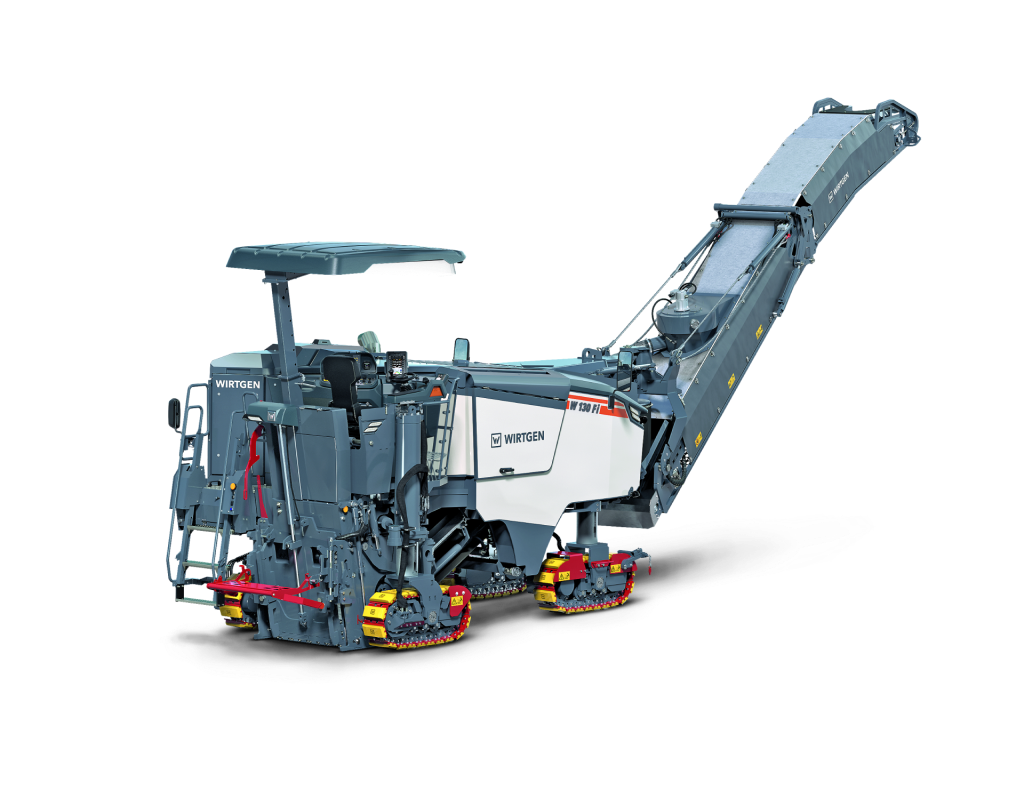

W 130 F
Milling width
1,300 mm
Depth max.
330 mm
Max Power
261 kW / 355 HP
Ow, CE
21,100 kg

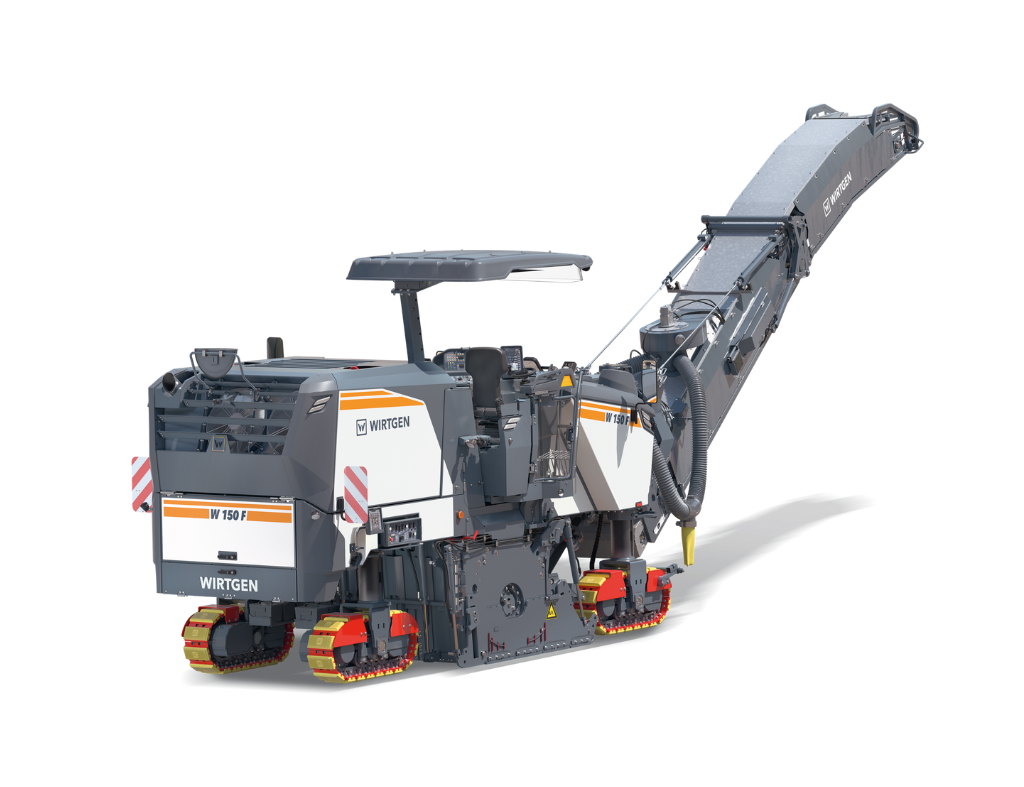

W 150 F
Milling width
1,500 mm
Depth max.
330 mm
Max Power
276 kW / 375 HP
Ow, CE
20,900 kg

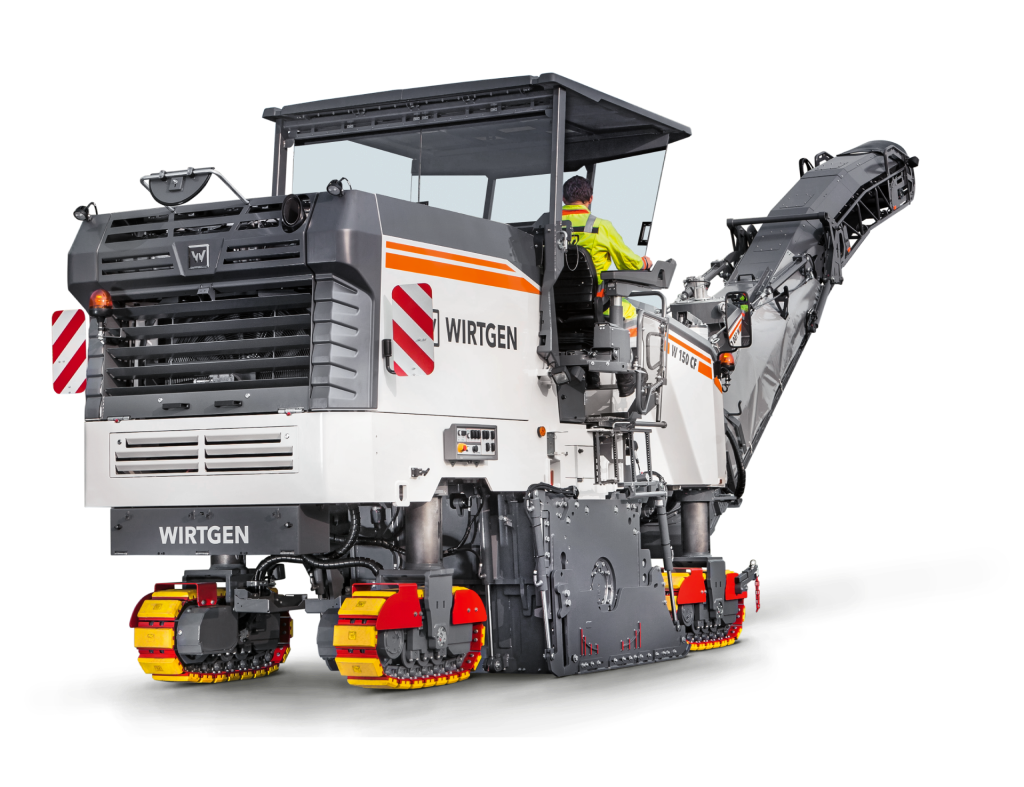

W 150 CF
Milling width
1,500 mm
Depth max.
330 mm
Max Power
276 kW / 375 HP
Ow, CE
20,550 kg
W 155 CF
Milling width
1,500 mm
Depth max.
330 mm
Max Power
276 kW / 375 HP
Ow, CE
20,650 kg

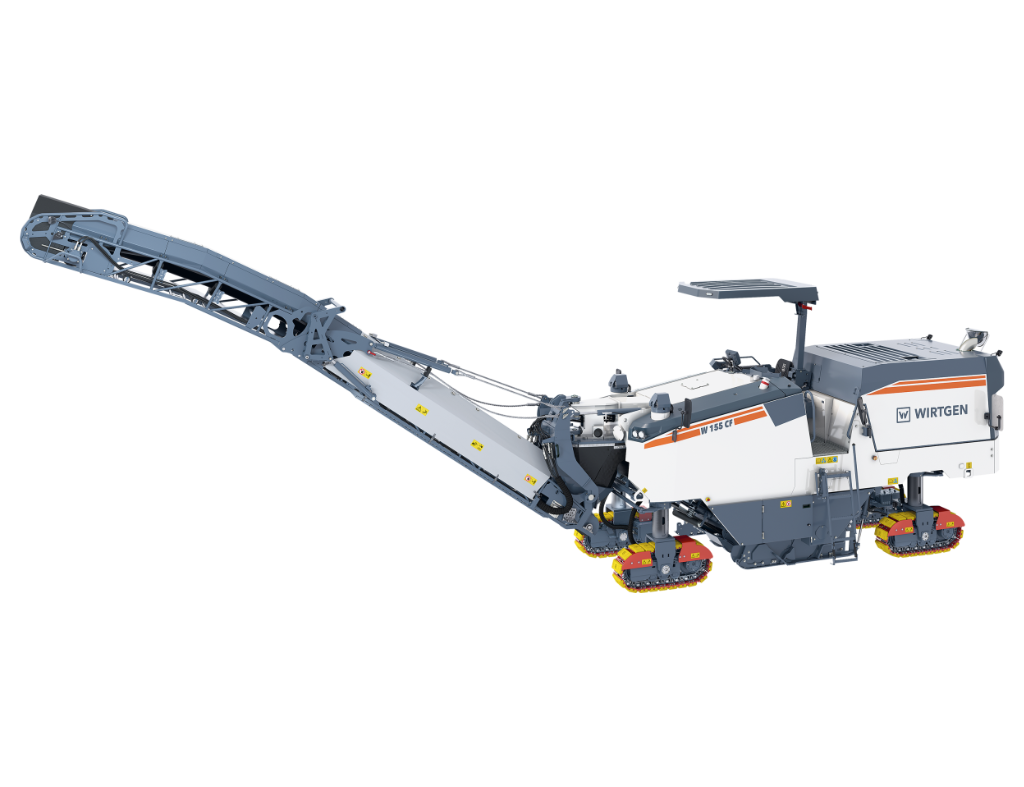

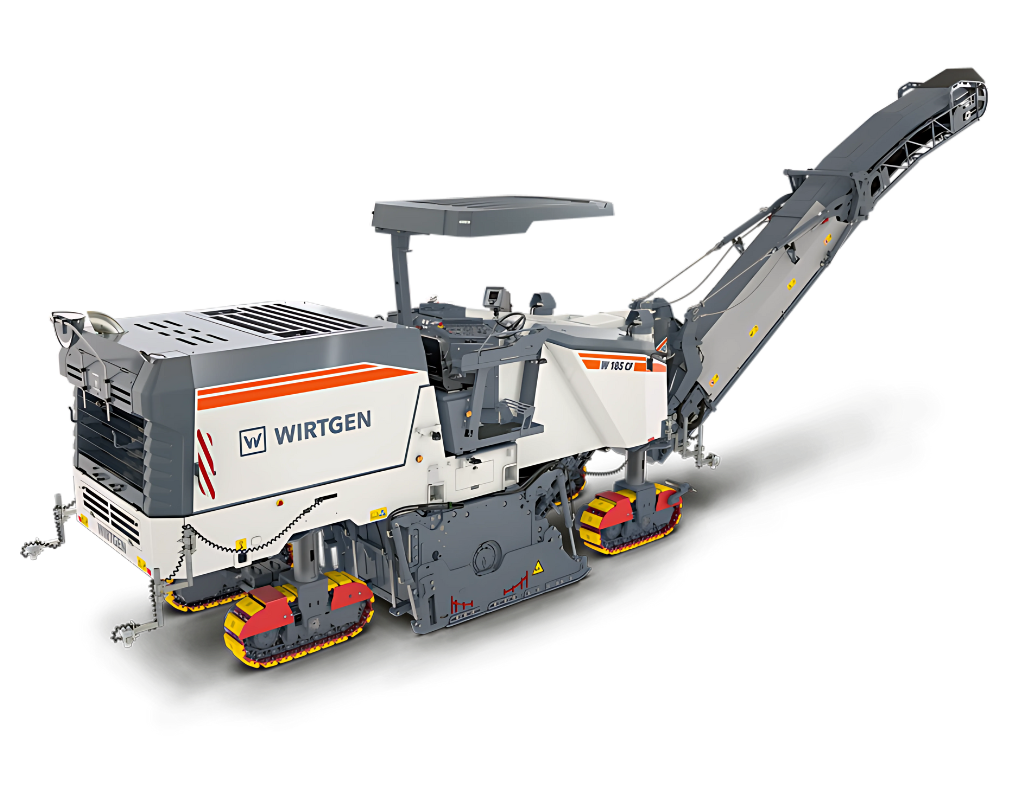

W 185 CF
Milling width
1,900 mm
Depth max.
330 mm
Max Power
276 kW / 375 HP
Ow, CE
21,000 kg

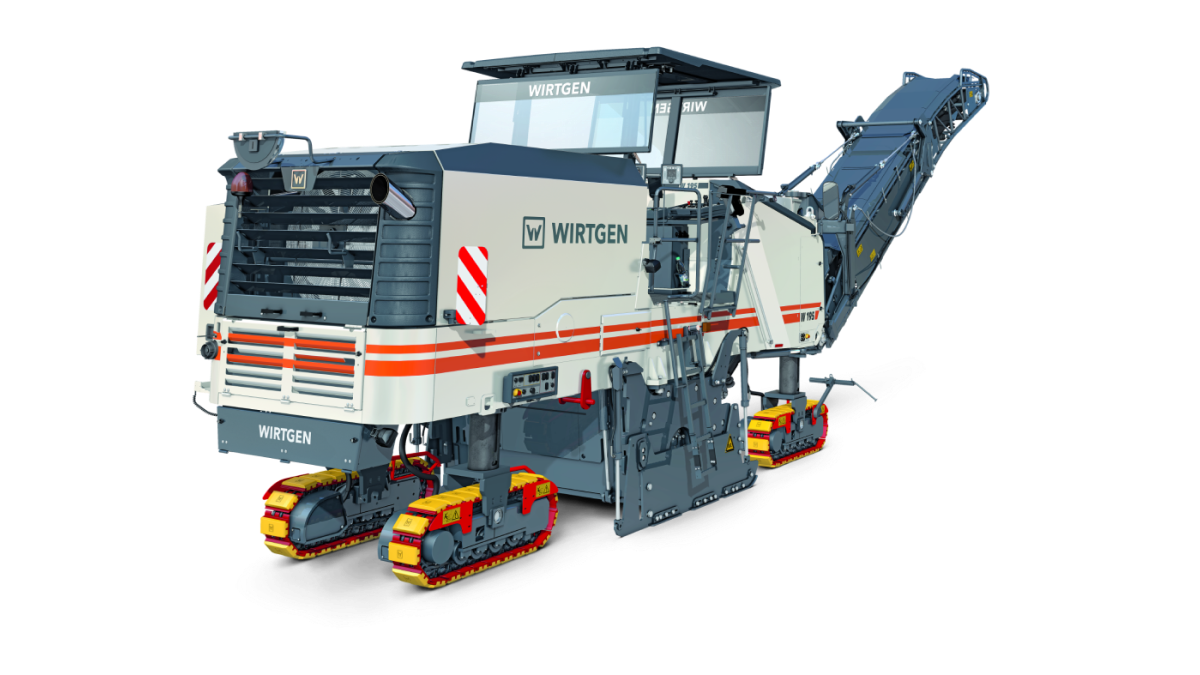

Large Milling Machines
Large milling machines have a milling drum positioned centrally beneath the machine and a two-part front-loading system. Trucks can be loaded quickly and flexibly via the slewing and height-adjustable discharge conveyor. A variety of different milling drums and milling drum assemblies are available to cater to the wide array of milling tasks. They can be exchanged quickly and easily to suit the application. The range of applications extends from wide-scale complete removal down to a depth of 35 cm in a single pass to the rehabilitation of concrete pavements and airport runways as well as fine milling to improve pavement skid resistance.
Brochures

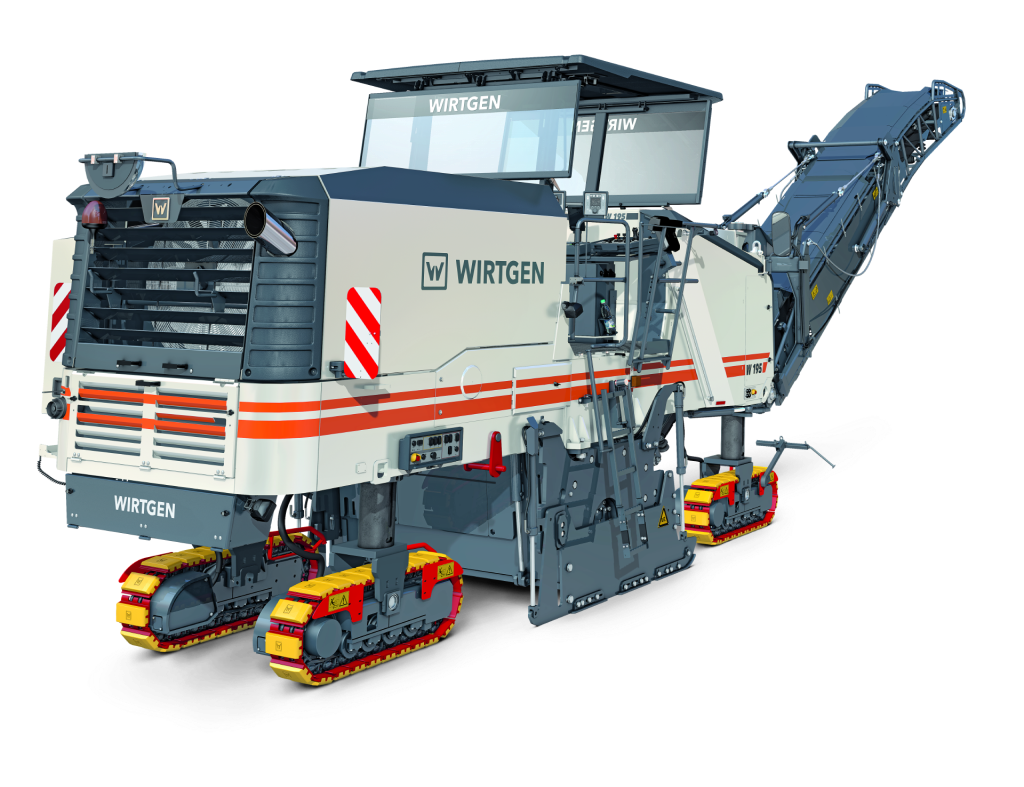

W 195
Milling width
2,000 mm
Depth max.
330 mm
Max Power
410 kW / 557 HP
Ow, CE
29,160 kg

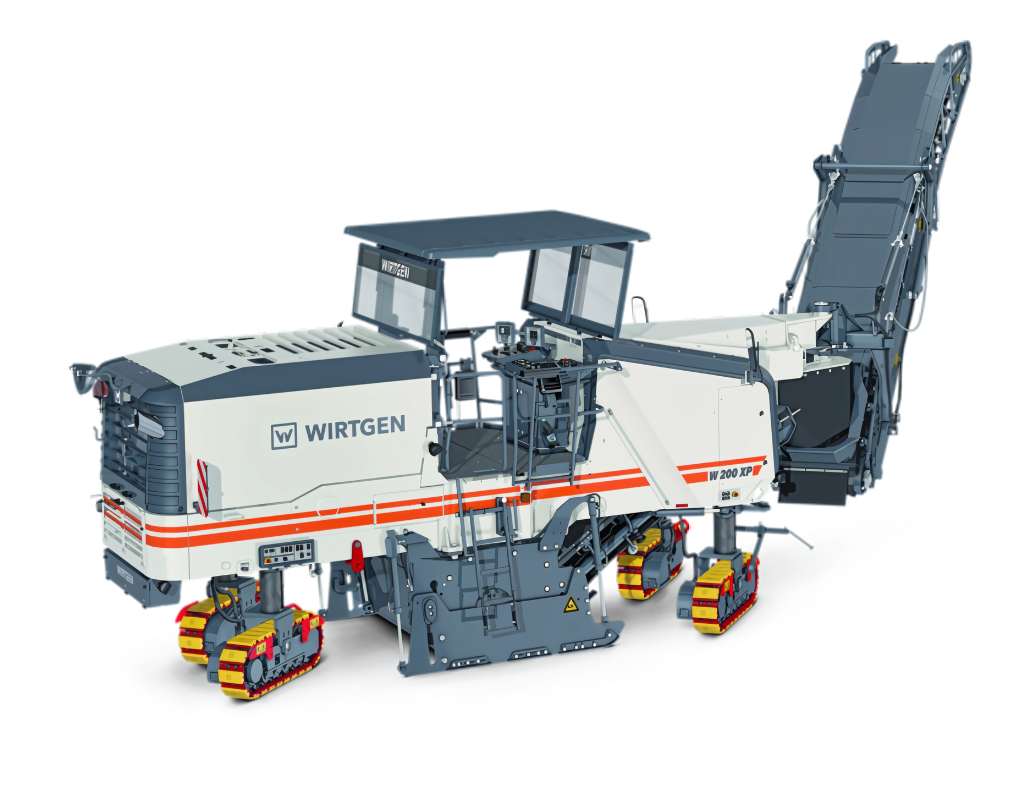

W 200 XP
Milling width
2,000 mm
Depth max.
330 mm
Max Power
455 kW / 619 HP
Ow, CE
29,160 kg

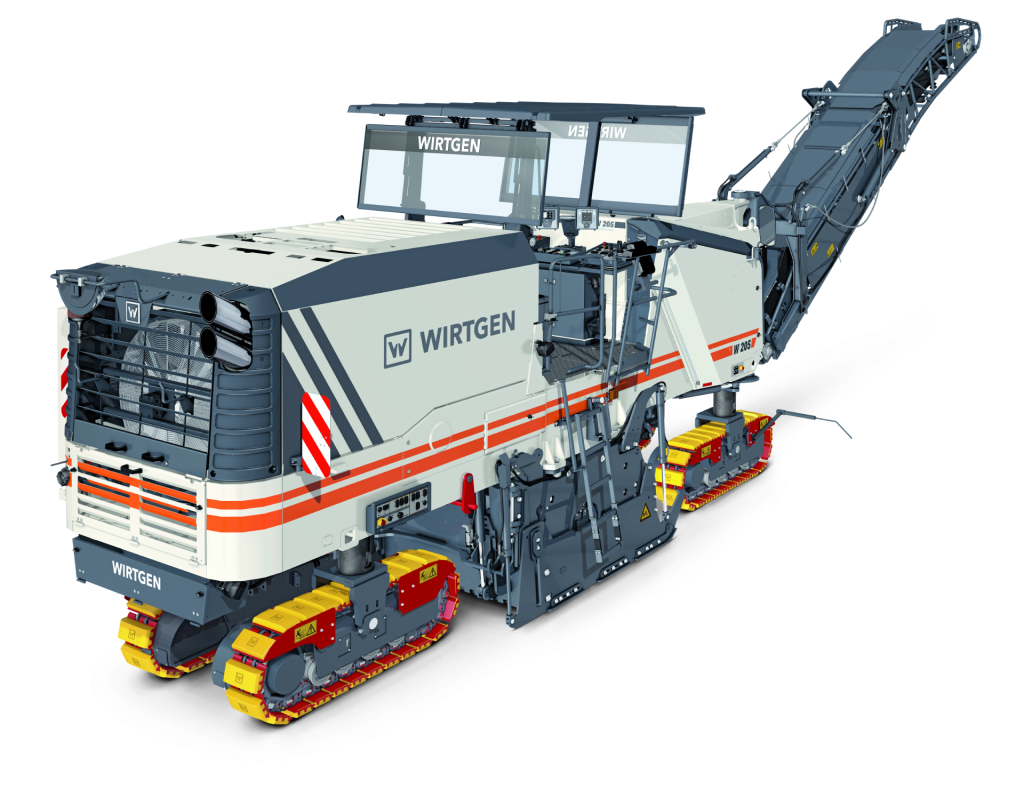

W 205
Milling width
2,000 mm
Depth max.
330 mm
Max Power
455 kW / 619 HP
Ow, CE
30,100 kg

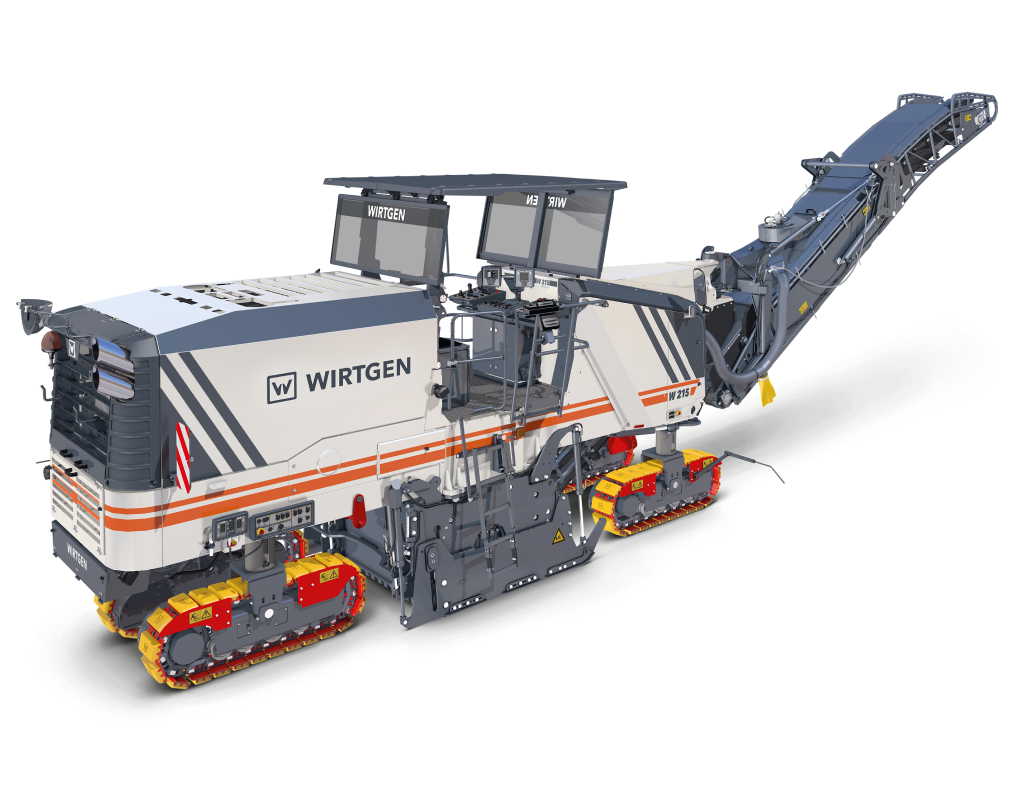

W 215
Milling width
2,000 mm
Depth max.
330 mm
Max Power
470 kW / 639 HP
Ow, CE
30,290 kg
